LP Series Industrial Waterproof Connectors
IP68-rated industrial waterproof connectors for secure, reliable power connections in outdoor, wet, dusty, and high-vibration environments.
- IP68-rated sealing for outdoor and industrial applications
- Secure self-locking design to prevent accidental disconnection
- Up to 30A current capacity on selected configurations
- Corrosion-resistant construction for long-term reliability
- Custom cable assemblies, logos, and packaging available
- Flexible MOQs and factory-direct support
Connector selection guide
How to Select an LP Series Connector
Choosing the right LP Series industrial waterproof connector starts with four practical requirements: electrical load, cable dimensions, mounting style and operating environment.
-
Electrical Load & Pole Count
Confirm the maximum voltage, current and number of power, signal, control and grounding conductors. Allow an appropriate safety margin for the application.
-
Cable Size
Match both conductor cross-section and cable outer diameter. Correct cable fit is essential for secure assembly and reliable environmental sealing.
-
Mounting Style
Use inline types for cable-to-cable wiring. Choose panel mount waterproof connectors or flange types for fixed equipment interfaces.
-
Environment & OEM Needs
Consider moisture, dust, vibration, temperature and maintenance frequency, plus any custom cable length, color, logo or assembly requirements.
LP Series Quick Comparison
Use these specifications as a starting point for model selection.
| Series | Pole options | Max. wire size | Voltage | Max. current | Typical fit |
|---|---|---|---|---|---|
| EW-LP16 | 2–9 poles | 1.5 mm² | 400V | 10A | Compact wiring |
| EW-LP20 | 2–12 poles | 4.0 mm² | 500V | 20A | Power + signal |
| EW-LP24 | 2–24 poles | 6.0 mm² | 500V | 35A | Multi-circuit systems |
| EW-LP28 | 2–5 poles | 10 mm² | 500V | 50A | Higher-current loads |
Why Choose LP Series Industrial Waterproof Connectors?
The LP Series is designed for buyers who need compact waterproof connectors with stable locking, dependable electrical contact, and flexible options for industrial, outdoor, and equipment-based wiring projects.
Precision-Fit Structure
Carefully matched plug, socket, sealing, and locking parts help support stable connection performance in repeated installation and equipment maintenance.
Reliable Material Selection
Engineering plastic housing, conductive contact parts, and sealing components are selected to balance insulation, durability, and outdoor usability.
Secure Locking Connection
The locking structure helps keep the connector firmly engaged, reducing accidental loosening caused by vibration, cable movement, or handling.
Waterproof Protection
Sealing rings and matched cable entries help protect internal contacts from rain, splash, dust, and moisture in outdoor or industrial environments.
Flexible Application Matching
Multiple sizes, pole counts, and connector formats make the LP Series suitable for lighting, sensors, machinery, automation, and outdoor equipment.
Project and OEM Support
pvlinktech supports model selection, cable matching, packaging options, and customization requests for distributors and equipment manufacturers.
pvlinktech recommendation: choose LP Series connectors according to cable diameter, current requirement, pole count, installation method, and waterproof protection needs.
Product range
LP Series Models and Connector Sizes
Compare pvlinktech LP Series industrial waterproof connectors by model size, pole count, wire range, current rating, cable diameter and mounting configuration.
LP Series Specification Overview
Engineering referenceSwipe horizontally to view the complete specification table.
| Model No. | Wire Section | Rated Voltage / Current | Cable Outer Diameter | IP Rating | Fire Rating | Contact Part |
|---|---|---|---|---|---|---|
| EW-LP12-2P to 8P Power Supply: 2/3/4/5Pin Signal: 6/7/8Pin |
2-6Pin: 0.5mm² / 20AWG 7-8Pin: 0.34mm² / 22AWG |
2-6Pin: 125V / 5A 7-8Pin: 100V / 3A |
5-7mm | IP68 | UL94 V-0 | Screw: 2/3Pin Soldering: 2/8Pin |
| EW-LP16-2P to 9P Power Supply: 2/3/4Pin Signal: 5/7/8/9Pin |
2-4Pin: 1.5mm² / 16AWG 5-9Pin: 0.5mm² / 20AWG |
2-4Pin: 400V / 10A 5-9Pin: 250V / 5A |
7-9mm; 4.6-5mm | IP68 | UL94 V-0 | Screw: 2/3/4/5Pin Soldering: 2-9Pin |
| EW-LP20-2P to 12P Power Supply: 2/3/4Pin Signal: 5/6/7/9/12Pin |
2-4Pin: 2.5-4mm² / 14-12AWG 5-7Pin: 1-1.5mm² / 18-16AWG 9-12Pin: 0.34-0.75mm² / 22-20AWG |
2-4Pin: 500V / 20A 5-7Pin: 500V / 10A 9-12Pin: 0.34-0.75mm² / 22-20AWG |
9-12mm; 5-6.5mm | IP68 | UL94 V-0 | Screw: 2/3/4/5/6/7Pin Soldering: 2-14Pin |
| EW-LP24-2P to 24P Power Supply: 2/3/4/5Pin Signal: 10/12/19/24Pin |
2-4Pin: 4.0mm² / 12AWG 5Pin: 2.5mm² / 14AWG 10-12Pin: 1.5mm² / 16AWG 19-24Pin: 0.5mm² / 20AWG |
2-4Pin: 500V / 25A 5Pin: 500V / 20A 10-12Pin: 400V / 10A 19-24Pin: 250V / 5A |
9.5-14mm | IP68 | UL94 V-0 | Screw: 2/3/4/5Pin Soldering: 2-24Pin |
| EW-LP28-2P to 5P Power Supply: 2/3Pin Signal: 3/5Pin |
2/3Pin: 10mm² 3/5Pin: 2.5mm² / 6mm² |
2-3Pin: 500V / 50A 3-5Pin: 480V / 32A |
16.5-18.5mm; 10.5-16.5mm | IP68 | UL94 V-0 | Screw: 2/3Pin Soldering: 2/3/5Pin |

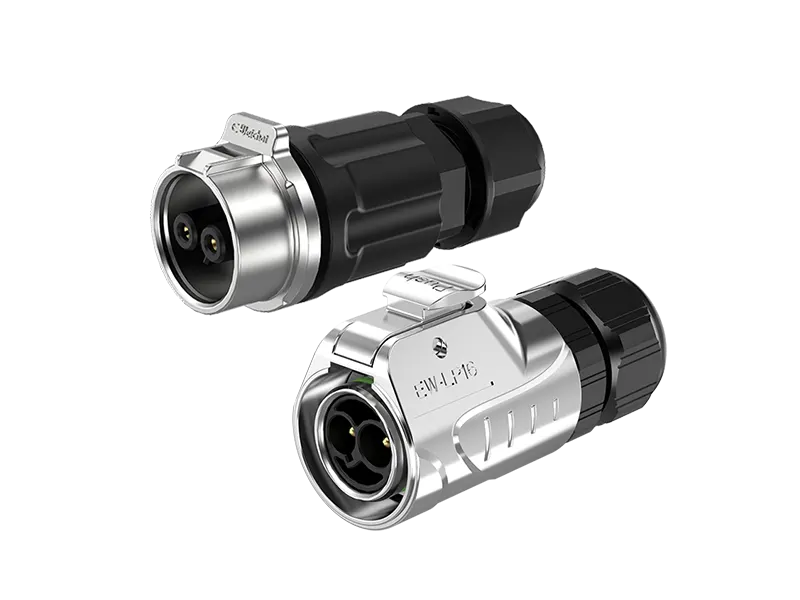

EW-LP12 Series
8 connector options

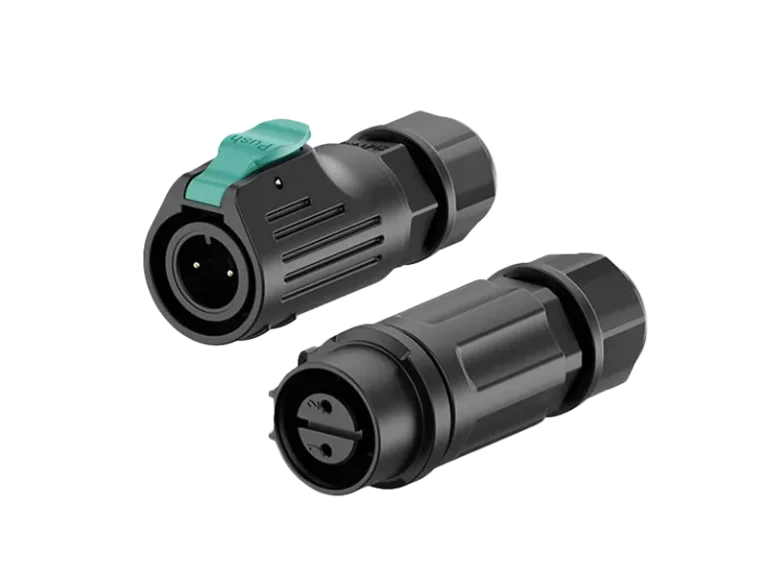

EW-LP12-2P to 8P
Max. 0.5mm² · 125V · 5A

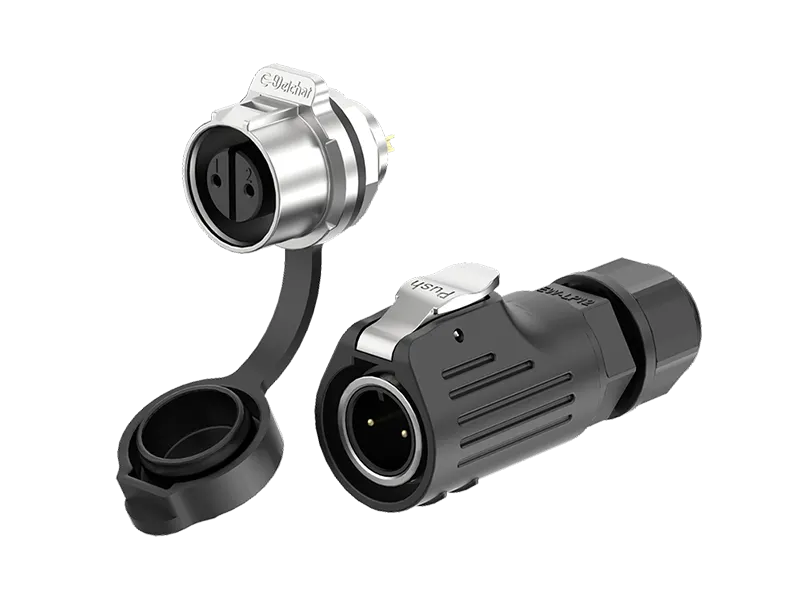

EW-LP12 With Cap
Protected interface · Compact design

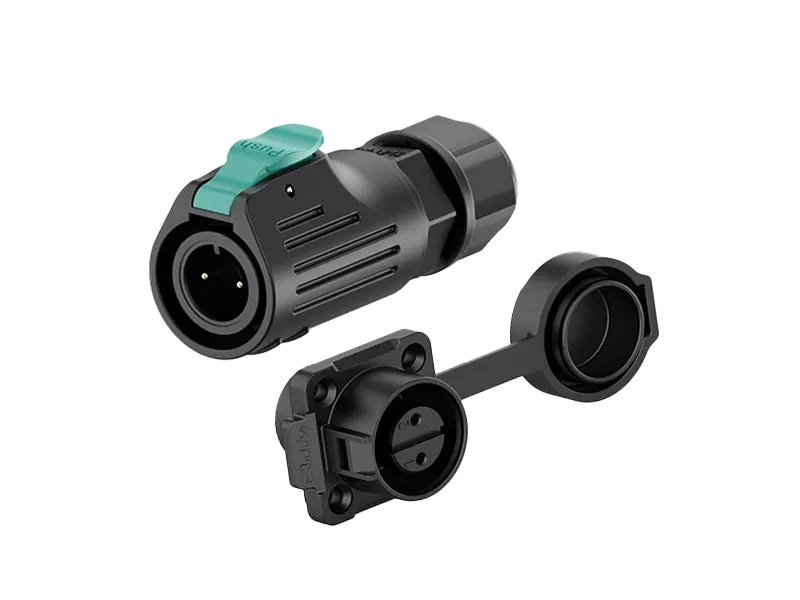

EW-LP12 Panel Mount
Fixed installation · IP68 sealing

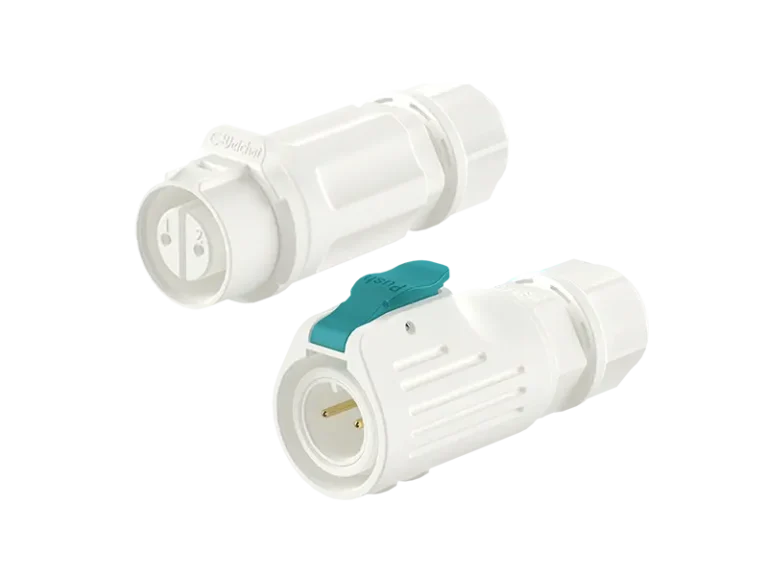

EW-LP12 White Option
Color customization · OEM support

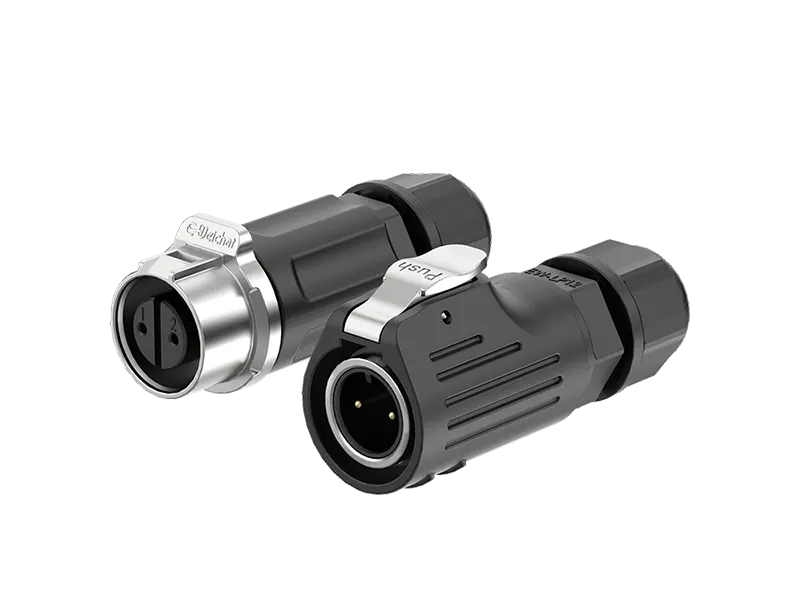

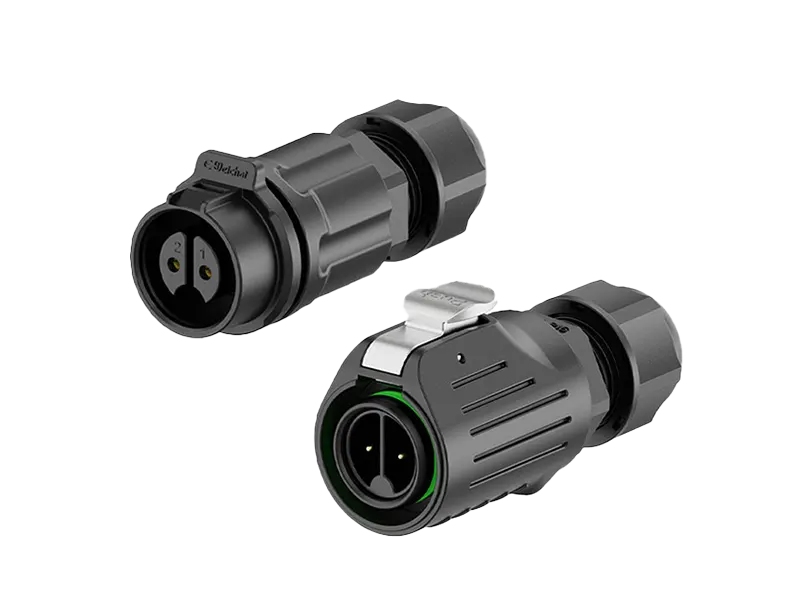

EW-LP12 Inline Set
Cable-to-cable · Fast connection
EW-LP12 Flange Type
Panel interface · Sealed cap

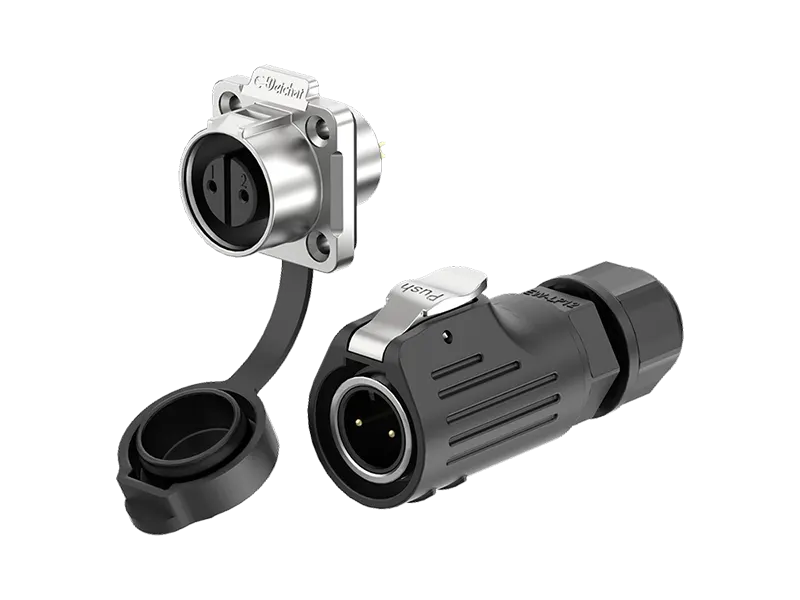

EW-LP12 Metal Interface
Panel use · Durable structure
EW-LP12 Custom Assembly
OEM matching · Project supply
EW-LP16 Series
8 connector options
EW-LP16-2P to 9P
Max. 1.5mm² · 400V · 10A
EW-LP16 Panel Mount
Fixed interface · Sealed cap

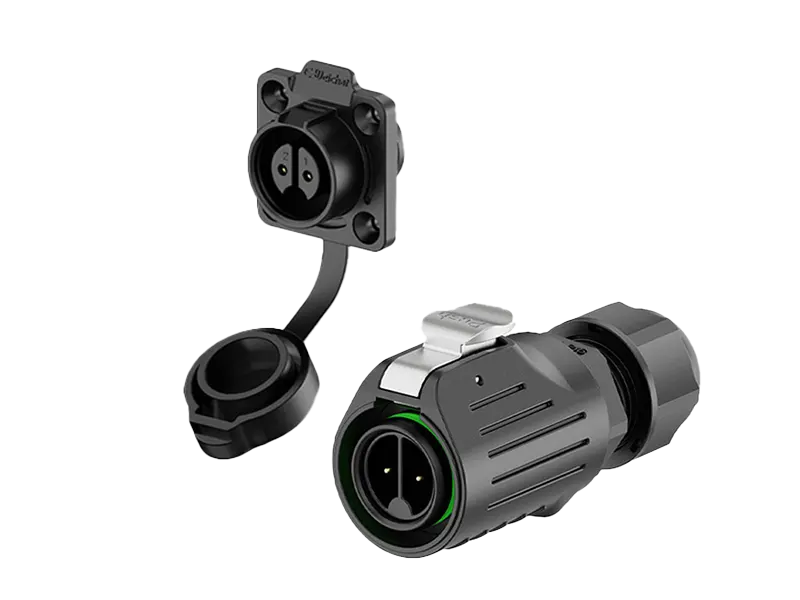

EW-LP16 Flange Type
Panel fixing · IP68 option

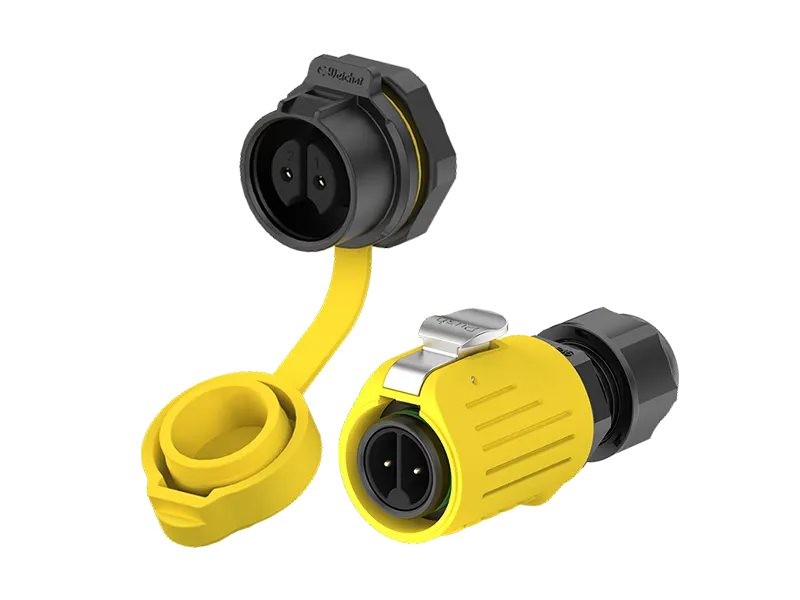

EW-LP16 Color Option
OEM color · Project matching
EW-LP16 Metal Interface
Panel use · Strong structure
EW-LP16 Metal Panel Type
Sealed cap · Equipment panel

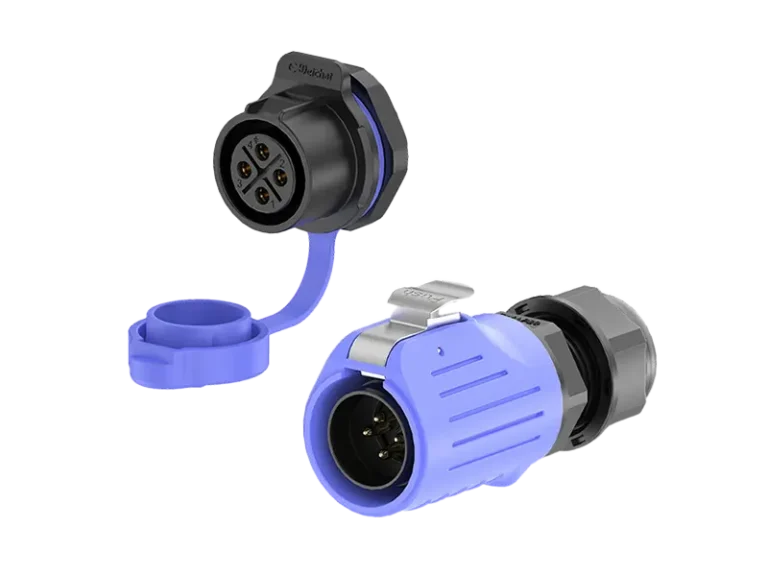

EW-LP16 Blue Option
Custom appearance · OEM supply
EW-LP16 Custom Assembly
Cable matching · Bulk supply
EW-LP20 Series
8 connector options
EW-LP20-2P to 12P
Max. 4.0mm² · 500V · 20A

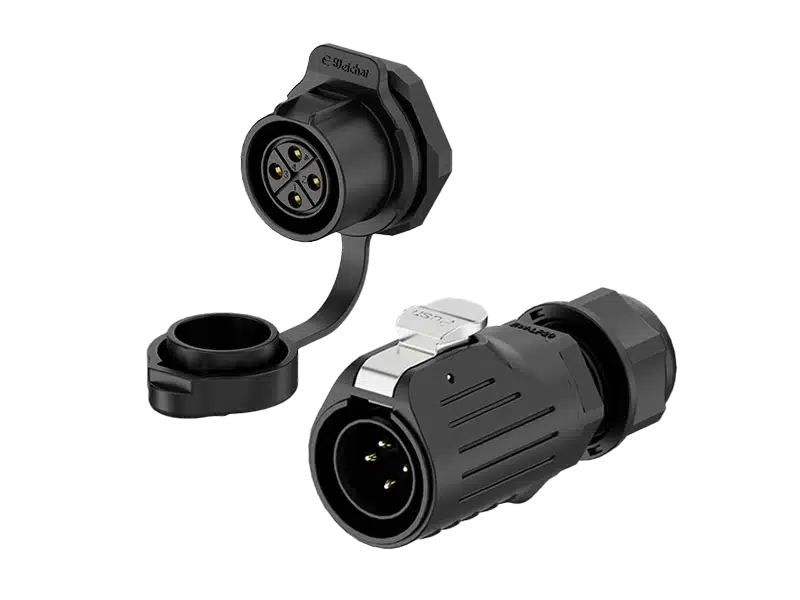

EW-LP20 Panel Mount
Equipment panel · Sealed cap
EW-LP20 Flange Type
Fixed mount · IP68 option
EW-LP20 Blue Option
Custom color · Project use

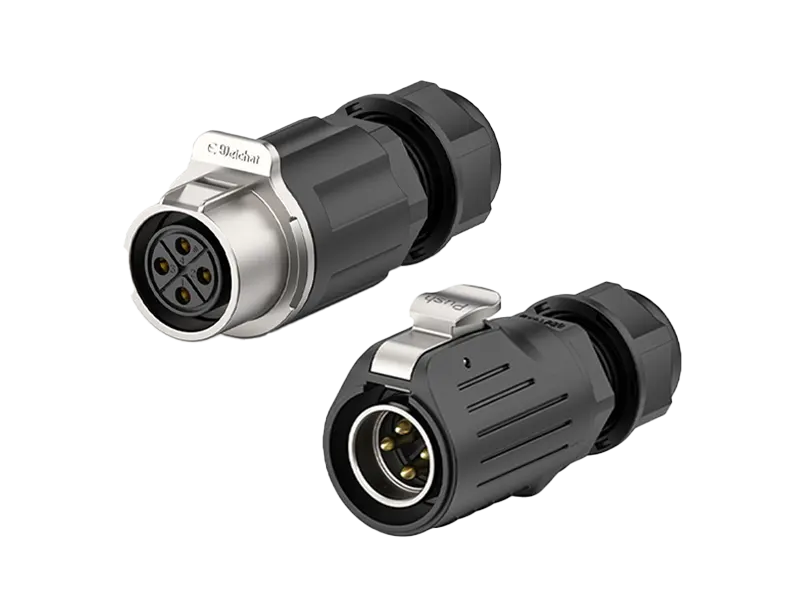

EW-LP20 Metal Interface
Panel integration · Durable build

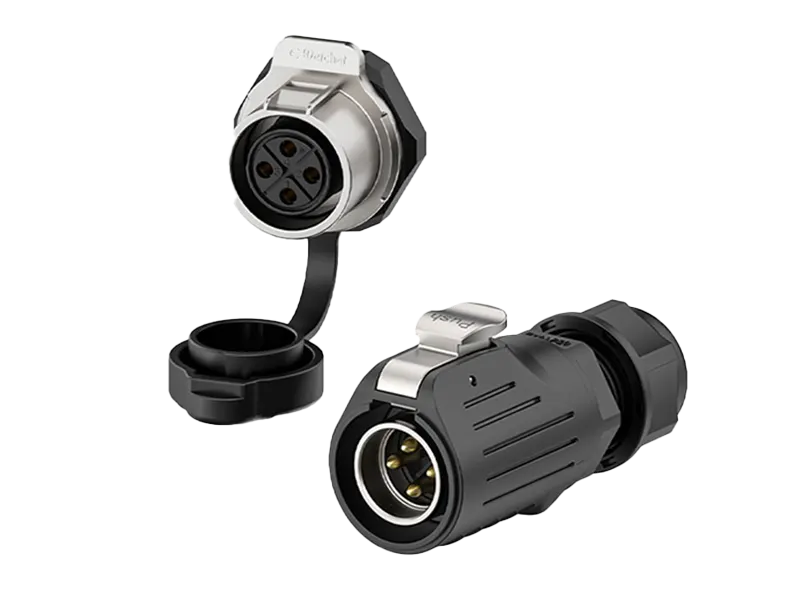

EW-LP20 Metal Panel Type
Sealed cap · Equipment use

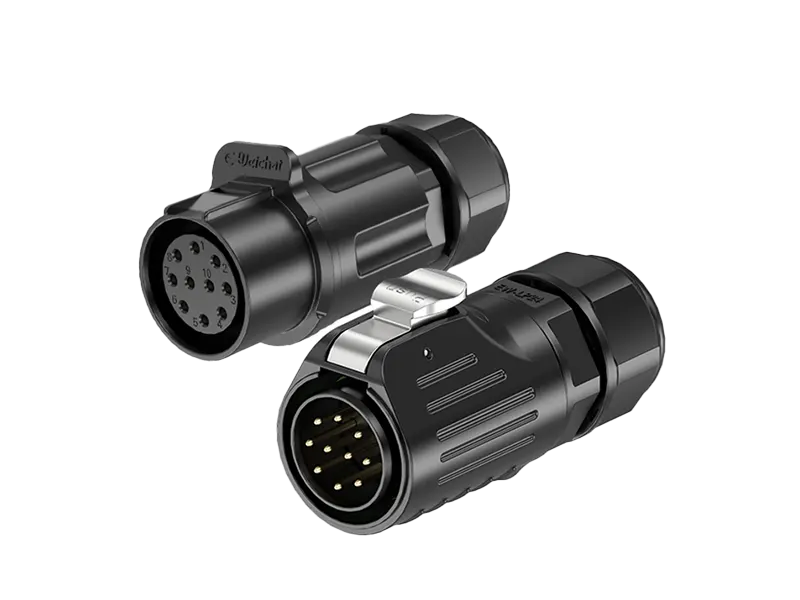

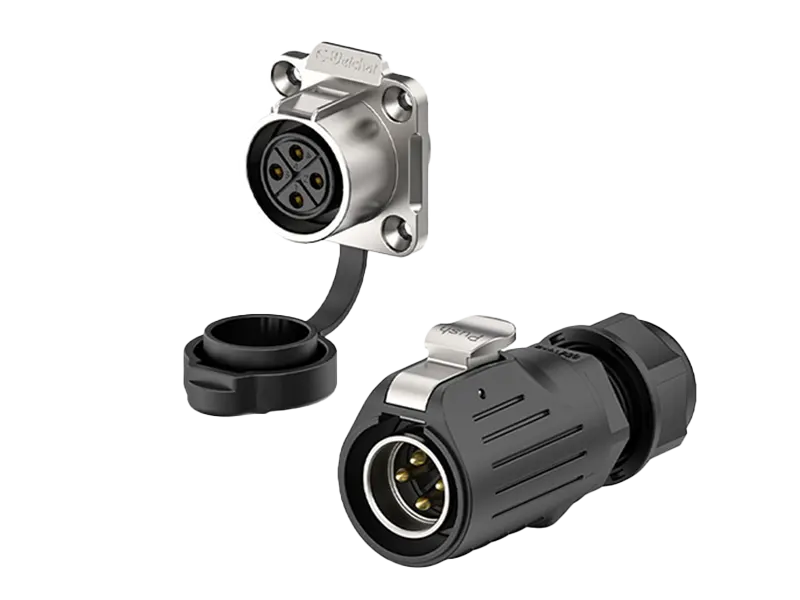

EW-LP20 Straight Type
Cable-to-cable · Stable locking

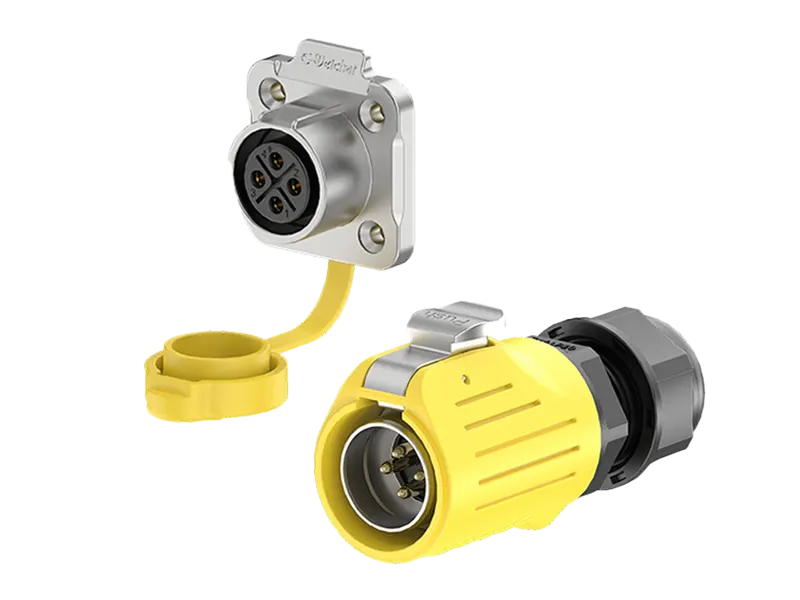

EW-LP20 Custom Assembly
OEM matching · Bulk supply
EW-LP24 Series

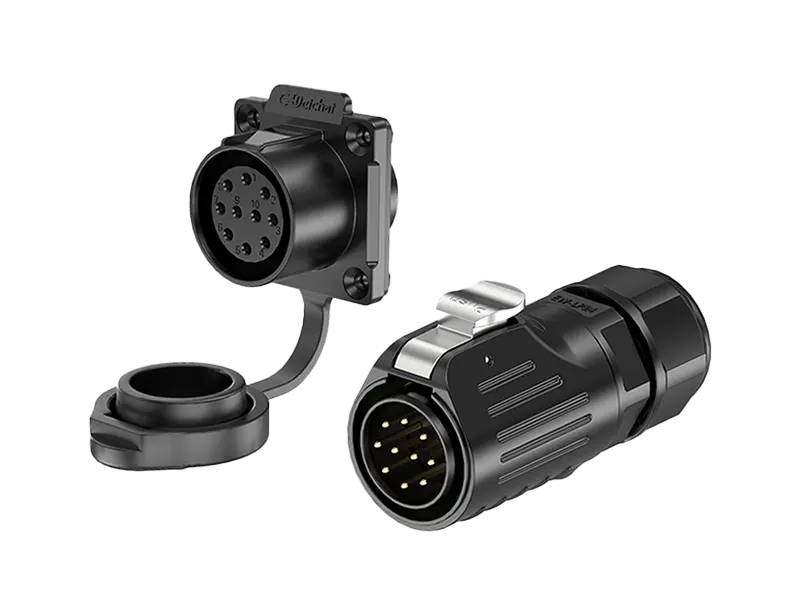

8 connector optionsEW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A

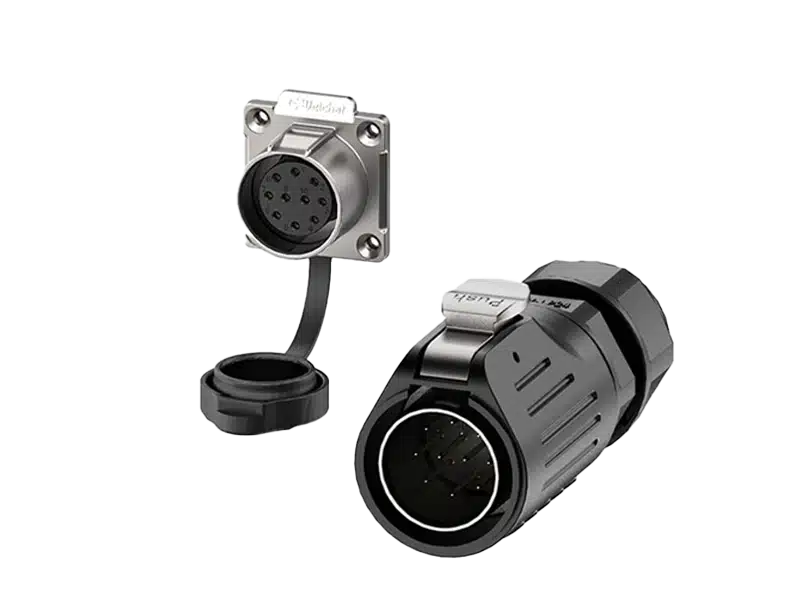

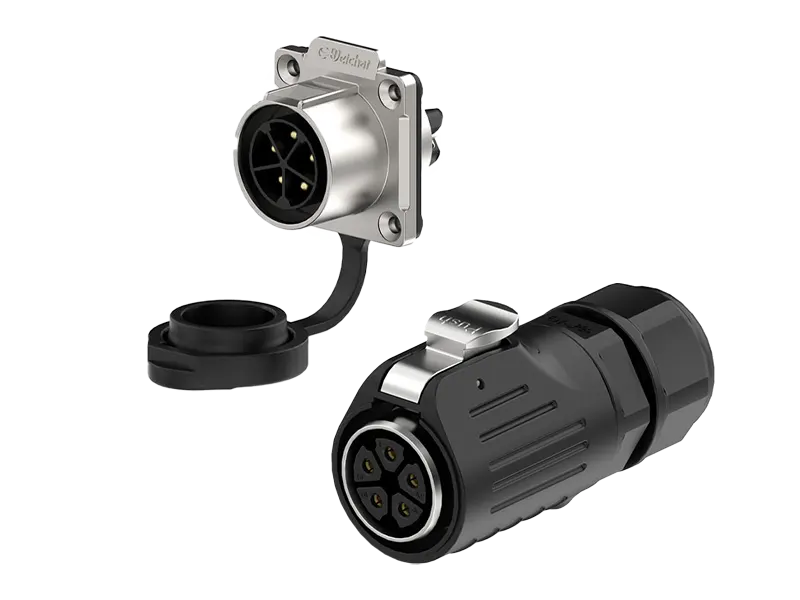

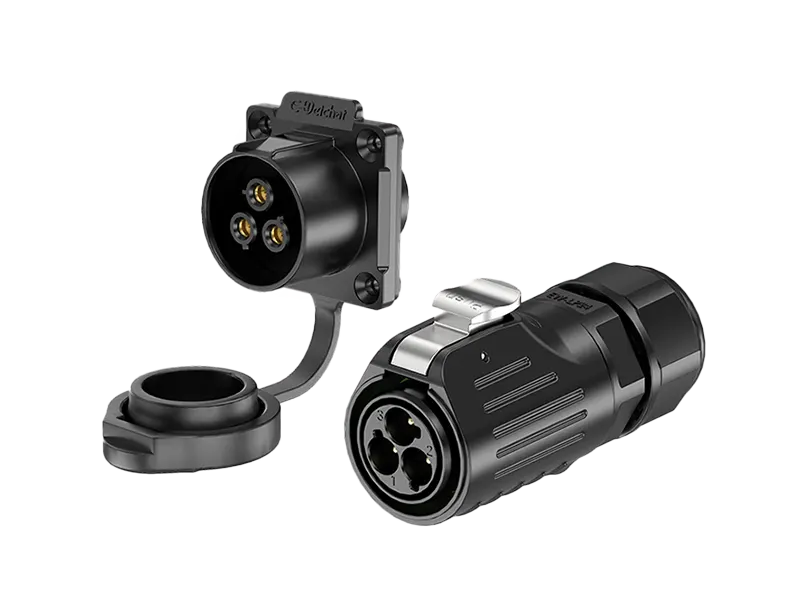

EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A

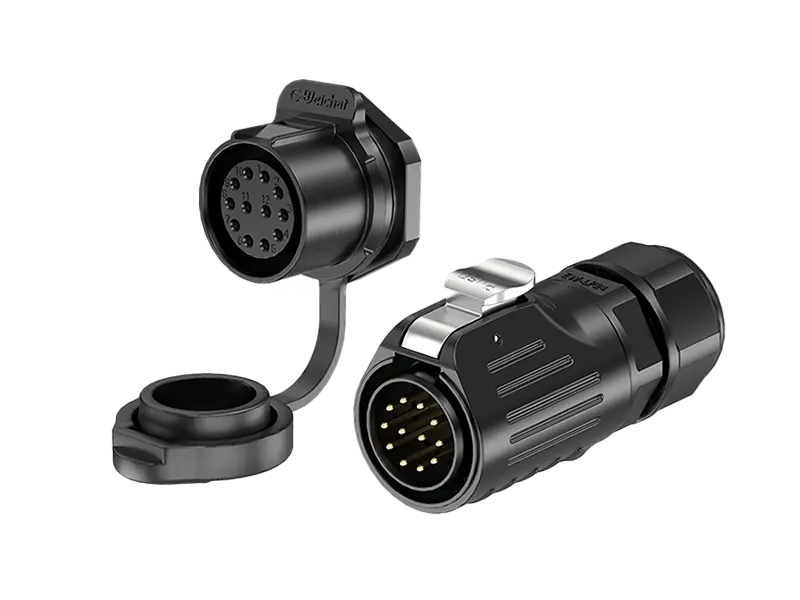

EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP24-2P to 24P
Max. 6.0mm² · 500V · 35A
EW-LP28 Series
4 connector options

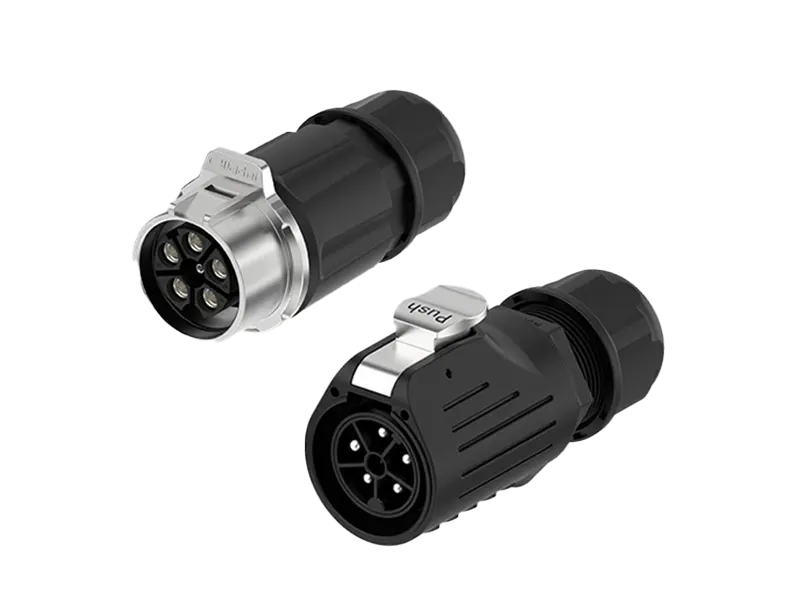

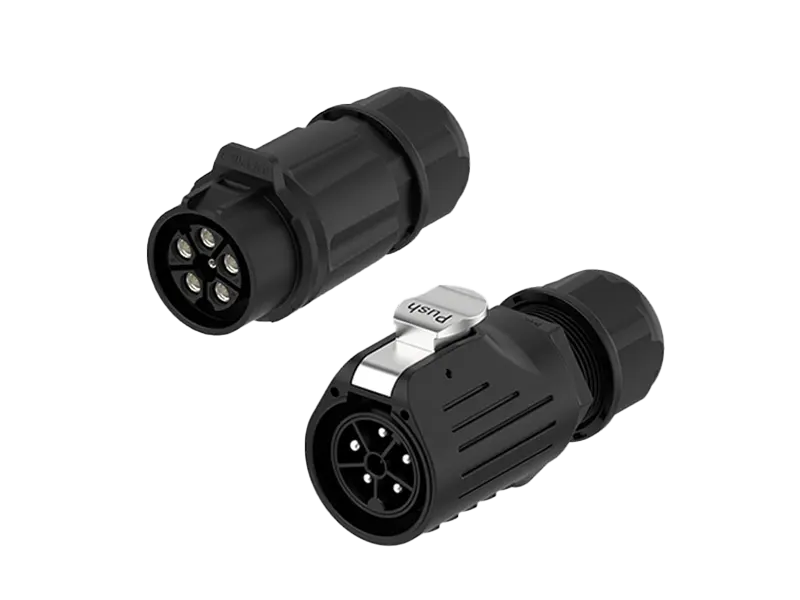

EW-LP28-2P to 5P
Max. 10mm² · 500V · 50A
EW-LP28-2P to 5P
Max. 10mm² · 500V · 50A
EW-LP28-2P to 5P
Max. 10mm² · 500V · 50A
EW-LP28-2P to 5P
Max. 10mm² · 500V · 50A
pvlinktech support: LP Series connectors can be selected by pole count, wire section, cable diameter, rated current, installation method, color, packaging, and OEM requirements.
Technical comparison
Compare LP Series Pole Counts, Current Ratings and Cable Ranges
LP Series industrial waterproof connectors support applications ranging from compact signal wiring to higher-current power connections. Compare the key specifications below to identify the right starting point for your project.
LP12–LP28 at a Glance
2–24 poles · Up to 50A| Series | Pole Count | Maximum Current | Maximum Wire Section | Cable Outer Diameter |
|---|---|---|---|---|
| EW-LP12 | 2–8 poles | Up to 5A | Up to 0.5mm² | 5–7mm |
| EW-LP16 | 2–9 poles | Up to 10A | Up to 1.5mm² | 4.6–9mm |
| EW-LP20 | 2–12 poles | Up to 20A | Up to 4.0mm² | 5–12mm |
| EW-LP24 | 2–24 poles | Up to 25A* | Up to 4.0mm²* | 9.5–14mm |
| EW-LP28 | 2–5 poles | Up to 50A | Up to 10mm² | 10.5–18.5mm |
Installation note: For inline and panel mount waterproof connectors, also confirm the panel cutout, cable-entry range, sealing condition and available installation space.
Specification note: Ratings vary by pole configuration. Confirm the exact industrial waterproof connector datasheet before final specification. *LP24 values require final technical verification.
Installation formats
Cable Mount vs. Panel Mount LP Series Connector Options
LP Series industrial waterproof connectors are available in cable-mounted and panel-mounted configurations. Choose the format according to where the connection is installed, how it moves and how technicians need to access it.
Flexible connection
Cable Mount (Inline)
Cable mount connectors attach directly to the cable and are commonly used for cable-to-cable connections, modular wiring and replaceable equipment leads.
- Cable extensions and modular wiring
- Flexible routing and field replacement
- Selected by cable OD, wire size and strain relief
Fixed interface
Panel Mount (Fixed)
Panel mount waterproof connectors create a fixed connection point on an equipment housing, control box or power unit for stable internal-to-external wiring.
- Equipment housings and control panels
- Flange, fixed-interface and cap options
- Selected by cutout, thickness and rear clearance
Mounting Format Comparison
Quick selection reference| Selection Factor | Cable Mount / Inline | Panel Mount / Fixed |
|---|---|---|
| Installation | Attached directly to the cable | Fixed to an equipment panel |
| Best For | Cable extensions and modular wiring | Housings, control boxes and power units |
| Movement | Moves with the cable | Remains fixed on the equipment |
| Key Dimensions | Cable OD and conductor size | Panel cutout, thickness and rear clearance |
| Maintenance | Replaceable cable section | Stable equipment service interface |
| Protection Check | Cable entry and mated sealing | Mated sealing and optional protective cap |
Selection tip: Choose cable mount industrial waterproof connectors for flexible cable-to-cable wiring. Choose panel mount types for a permanent, serviceable equipment interface. In both cases, confirm pole count, current rating, cable range and IP protection for the complete assembled connection.
Installation guidance
LP Series Connector Mating, Locking and Installation Guide
Correct assembly supports the electrical performance, mechanical security and environmental sealing of LP Series industrial waterproof connectors. Follow the applicable model datasheet before placing the connection into service.
Disconnect and isolate power before installing, mating, inspecting or disconnecting a connector. Installation should be completed by appropriately qualified personnel.
-
Prepare and Inspect
Confirm that the connector, contacts, seals and cable range match the selected model.
-
Align and Mate
Match the alignment keys and insert the connector straight without forcing or twisting the contacts.
-
Lock and Seal
Fully engage the locking mechanism and secure the cable gland according to the applicable datasheet.
-
Inspect and Test
Confirm complete engagement, inspect the seals and perform the required electrical tests before energizing.
Important: The stated IP rating depends on the correct cable range, complete assembly and fully mated condition. Unmated protection may require a sealing cap. Always follow the applicable datasheet for these industrial waterproof connectors.
Applications of LP Series Industrial Waterproof Connectors
pvlinktech LP Series connectors are used where cables need compact, sealed, and stable connections. They support equipment manufacturers, system integrators, lighting suppliers, and project buyers across outdoor and industrial environments.
Industrial Automation
Suitable for sensors, actuators, control modules, machinery wiring, and automated production equipment that require stable signal or power connection.
Solar and New Energy Systems
Useful for renewable energy devices, outdoor cable assemblies, energy storage accessories, and weather-exposed power connection points.
Electric Vehicle Equipment
Supports charging accessories, battery management equipment, control modules, and cable connections that need protected electrical interfaces.
LED Display and Lighting Systems
A practical option for display screens, signage, tunnel lighting, architectural lighting, and outdoor LED modules that need serviceable wiring.
Audio-Visual and Communication Devices
Helps protect cable joints for professional AV systems, communication equipment, outdoor screens, monitoring devices, and data-related installations.
Testing and Precision Equipment
Suitable for instruments, inspection equipment, laboratory devices, and measurement systems where reliable connection and orderly wiring are important.
pvlinktech support: LP Series connector selection can be matched according to cable diameter, pole count, current rating, locking method, installation environment, and OEM requirements.
Performance verification
IP68 Sealing and Mechanical Performance Testing
The performance of LP Series industrial waterproof connectors depends on the selected model, cable range, assembly method and fully mated condition. Testing should use clearly defined project conditions.
IP68 Sealing
Check water and dust ingress using the applicable method, defined conditions and correctly assembled samples.
Locking and Retention
Verify that the locking structure remains engaged during handling, cable movement and the required retention load.
Vibration Stability
Evaluate mechanical engagement and electrical continuity under the vibration conditions required by the application.
Cable Entry
Confirm that the cable gland matches the cable diameter and provides suitable sealing and strain relief.
Important: IP68 performance is not automatic in every installation. Confirm the test method, duration, sample condition and whether protection applies while mated or capped. Panel mount waterproof connectors should also be checked for panel sealing and mounting stability.
OEM project support
Custom LP Series Connectors and Cable Assemblies
Custom connector and cable assembly solutions can be matched to the project’s electrical, mechanical, installation, identification and packaging requirements.
Connector Configuration
Select the LP Series size, pole count, contact arrangement, current rating and cable-entry range.
Cable Assembly
Define the cable type, conductor size, outer diameter, length and termination required at each end.
Mounting and Identity
Choose inline, flange or panel mounting, plus available color, logo and cable-label options.
Packaging and Supply
Confirm quantities, labels, barcodes, documentation and bulk or project-specific packaging.
What to send us
Request a Custom Solution
- Series and pole count
- Voltage and current
- Cable specification
- Mounting method
- Operating environment
- Estimated quantity
Custom Industrial Waterproof Connector Solutions
pvlinktech helps customers develop LP Series waterproof connector solutions for their own product lines, equipment systems, and regional markets. We can support branding, connector matching, packaging, and practical OEM requirements based on your application.
pvlinktech support: share your cable diameter, pole count, target use, expected quantity, branding idea, and packaging needs. We will help recommend a practical LP Series customization plan.
Request Custom Support
Customer Success Stories with Industrial Waterproof Connectors
pvlinktech waterproof connectors are used in demanding environments where cable joints must remain stable, protected, and easy to maintain. These examples show how connector selection supports real project reliability.
Case Study 01
Industrial Automation Wiring Upgrade
A production equipment integrator needed a cleaner connector solution for machines exposed to dust, vibration, coolant mist, and frequent maintenance checks. Traditional cable joints were difficult to inspect and time-consuming to replace.
- Matched LP Series connectors to sensor and power cable requirements
- Improved replacement speed for maintenance teams
- Reduced exposed cable joints inside harsh workshop conditions
- Helped standardize connector selection across multiple machines
The upgraded connector layout made machine wiring easier to service while keeping key electrical connections protected during daily production.
Case Study 02
Solar Energy Cable Connection Project
A solar installation team required waterproof connectors for outdoor cable routing between power equipment, monitoring devices, and auxiliary electrical systems. The project needed stable sealing under sunlight, rain, and temperature changes.
- Selected connector models according to cable diameter and current load
- Used sealed plug-and-socket connections for easier field maintenance
- Improved cable organization around outdoor equipment areas
- Supported long-term protection for exposed connection points
With the right connector matching, the installation team created a cleaner and more serviceable wiring system for outdoor renewable energy equipment.
Frequently Asked Questions About LP Series Connectors
Here are common questions buyers ask before choosing pvlinktech industrial waterproof connectors for equipment, lighting, automation, and OEM cable assembly projects.
What makes LP Series connectors different from ordinary waterproof connectors?
LP Series connectors are designed for industrial-style wiring where compact size, stable locking, sealed cable entry, and multiple pole options are important. They are suitable for both power and signal connection needs.
Which pin configurations are available?
pvlinktech can support multiple pole options depending on the model series, including low-pin power connectors and multi-pin signal connectors. The best choice depends on your cable size, current load, and wiring layout.
Can LP Series connectors transmit both power and signal?
Yes. Different LP models can be selected for power supply, signal transmission, or mixed wiring applications. For safety and performance, confirm the rated current, voltage, and wire section before use.
What environments are these connectors suitable for?
They are commonly used in outdoor lighting, industrial equipment, automation systems, solar accessories, EV-related devices, LED displays, sensors, and other applications exposed to moisture, dust, or frequent maintenance.
How do I choose the correct connector size?
Check four key details first: cable diameter, wire section, pole count, and current requirement. Then choose the connector body size and mounting style that fit your installation space.
Are these connectors compatible with common industry requirements?
pvlinktech connector options can be supplied with waterproof protection, flame-retardant housing materials, and project-ready specifications. Specific certifications or test requirements should be confirmed based on the chosen model.
What tools are needed for installation?
Typical installation requires wire strippers, a screwdriver or soldering tools depending on contact type, and basic testing equipment. Always install the sealing ring and cable gland in the correct order before final locking.
Can I request custom cable lengths or configurations?
Yes. pvlinktech can discuss cable length, connector color, pole configuration, labeling, packaging, and OEM assembly requirements according to your project or wholesale plan.
How long can these connectors last in harsh environments?
Service life depends on model selection, installation quality, cable matching, load conditions, and exposure environment. Correct cable gland matching and proper locking are important for long-term reliability.
Do you provide technical support for integration projects?
Yes. Share your cable diameter, wire section, current requirement, installation method, and application environment. pvlinktech can help recommend suitable connector models and customization options.
pvlinktech tip: if you are unsure which LP Series connector to choose, prepare your cable size, pole count, voltage/current requirement, and installation environment before requesting a recommendation.
