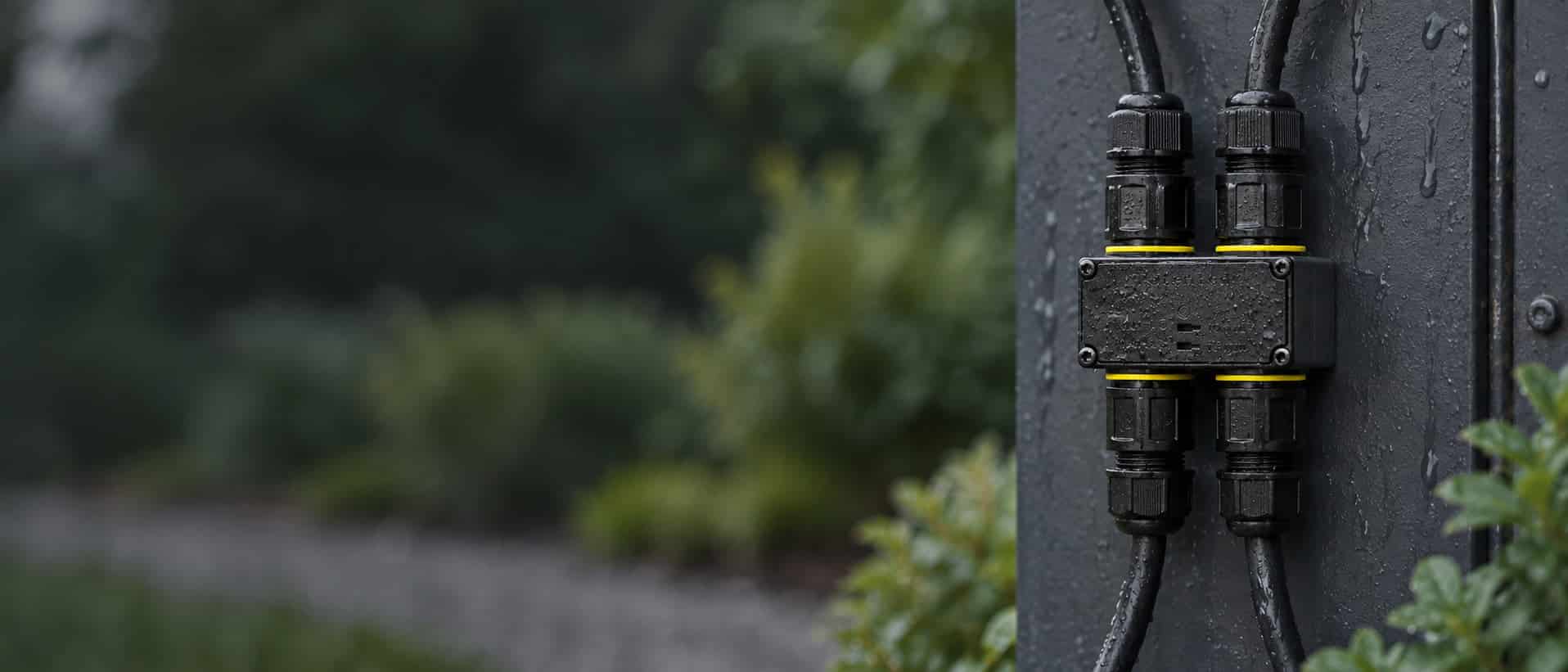

Screw Waterproof Connectors for Reliable Outdoor Wiring
IP-rated connectors for secure solar, lighting, and industrial cable connections.
- IP68 sealing options help protect connections from water, dust, and moisture
- Screw-lock coupling provides a secure connection in vibration-prone applications
- Durable materials support reliable use in outdoor and industrial environments
- Available in multiple pin counts, cable sizes, and connector configurations
Application Guide
When to Use a Screw Waterproof Connector
Use screw waterproof connectors when cable joints require dependable protection from moisture, dust, vibration, or changing outdoor conditions. The threaded locking structure helps keep the connection secure, while sealing rings and cable glands reduce water and dust entry around the cable openings.
-
Water and Dust Exposure
For wiring exposed to rain, splashing water, humidity, irrigation, or airborne dust.
-
Vibration and Movement
For machinery, sensors, and equipment where movement could loosen an ordinary connection.
-
Regular Maintenance
For equipment that must be disconnected, inspected, replaced, or extended during service.
-
Organized Installation
For a cleaner and more serviceable cable joint than tape, loose terminals, or field-applied sealant.
IP68 Options
Secure Screw-Lock
Built for Demanding Connections
Outdoor lighting · Equipment · Industrial wiring
Selection Checklist
Match the Connector to Your Application
When comparing waterproof cable connectors or threaded waterproof connectors, confirm both the electrical and mechanical requirements.
- Cable diameter
- Wire size
- Pole count
- Current and voltage
- Required IP rating
- Installation environment
Installation note:
Waterproof performance depends on correctly matching the connector,
sealing components, and cable diameter. For exposed, buried, or
wet-area installations, select a model specifically rated for the
intended environment and follow the installation requirements.
Why Choose pvlinktech Screw Waterproof Connectors?
pvlinktech screw waterproof connectors are made for outdoor wiring projects that require secure locking, reliable sealing, stable electrical contact, and practical installation support.
Waterproof Sealing Performance
Matched sealing rings and cable glands help protect wiring joints from rain, splash, dust, and moisture in outdoor and industrial environments.
Stable Electrical Contact
Designed to support dependable power or signal transmission when the connector is correctly matched to cable size, current load, and installation method.
Durable Housing Materials
Engineering plastic housings help provide insulation, strength, and long-term usability for lighting, equipment, cable extension, and outdoor wiring applications.
Secure Screw-Locking Structure
Threaded locking helps keep the connector closed and stable, reducing loosening caused by cable movement, vibration, or routine maintenance.
Practical Outdoor Installation
Suitable for garden lighting, landscape wiring, solar accessories, machinery, LED fixtures, and other projects where cable joints need protection.
OEM and Project Support
pvlinktech can help with connector selection, cable matching, model comparison, packaging options, logo marking, and bulk supply requirements.
pvlinktech recommendation: for best performance, choose the connector according to cable diameter, wire section, current rating, pole count, and the actual installation environment.
Product List
Compare pvlinktech screw waterproof connector models by wire size, rated voltage, current, cable diameter, waterproof rating, and flame-retardant performance before choosing the right series for your project.
| Model No. | Min. Wire Size | Max. Wire Size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|
| EW-M16-2/3P | 0.5mm² | 1.5mm² | 450V | 17.5A | 3.5-7mm, 7-10mm | UL94 V-0 | |
| EW-M20-3/4/5/6P | 0.5mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm | UL94 V-0 | |
| EW-M25-3/4/5P | 0.5mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 | |
| EW-M25-3T/4T/5T | 0.5mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 | |
| EW-M20T-2/3P | 0.5mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm | UL94 V-0 | |
| EW-M25T-2P/3P | 0.5mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 | |
| EW-M20X-2P/3P | 0.5mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm | UL94 V-0 | |
| EW-M25X-2P/3P | 0.5mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 | |
| EW-M25T-C-3P/5P | 0.5mm² | 4.0mm² | 450V | 24A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 | |
| EW-M25Y-3/5P | 0.5mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm, 10-14mm | UL94 V-0 |
Product Photo & Specification Download
Replace each placeholder image and download link with your own product photo and specification file from the WordPress media library.
EW-M16-2/3P
EW-M20-3/4/5/6P
EW-M25-3/4/5P
EW-M25-3T/4T/5T
EW-M20T-2/3P
EW-M25T-2P/3P
EW-M20X-2P/3P
EW-M25X-2P/3P
EW-M25T-C-3P/5P
EW-M25Y-3/5P
pvlinktech support: if you are comparing models, confirm cable diameter, wire size, pole count, current load, and installation environment before choosing a screw waterproof connector.
Screw Waterproof Connector Application Scenarios
pvlinktech screw waterproof connectors are used in projects where cable joints need secure locking, moisture protection, and easier installation across outdoor, industrial, and equipment-based environments.
Garden and Landscape Lighting
Suitable for pathway lights, garden lamps, lawn lighting, wall washers, and low-voltage outdoor lighting systems exposed to rain and irrigation water.
Street and Architectural Lighting
Helps connect lighting fixtures in streets, tunnels, building facades, bridges, and public spaces where maintenance access and stable sealing are important.
Marine and Outdoor Equipment
Useful for docks, boats, outdoor equipment, and humid environments that require protected cable joints and reliable electrical connection.
Industrial Automation
Supports sensors, control systems, machinery wiring, and equipment cable extensions where vibration, dust, and routine inspection may occur.
Fountain and Water Feature Projects
Provides a practical connection option for decorative water features, outdoor LED lighting, and wet-area cable routing when the correct model is selected.
Agricultural and Irrigation Systems
Suitable for greenhouse equipment, pump wiring, irrigation controls, monitoring devices, and farm systems exposed to moisture and outdoor conditions.
pvlinktech recommendation: choose connector specifications according to cable diameter, current load, pole count, waterproof rating, and whether the product will be exposed, buried, or installed inside equipment.
Custom Screw Waterproof Connector Support
Custom Screw Waterproof Connector Solutions
pvlinktech helps customers customize screw waterproof connectors for product lines, lighting projects, electrical equipment, distribution channels, and OEM cable assemblies. We focus on practical details that make the connector easier to sell, install, and maintain.
- Logo marking or model code printing on connector housings
- Connector color, cable length, and cable diameter matching
- Private label packaging, instruction sheets, and carton labels
- Project-based connector selection for outdoor and industrial wiring
pvlinktech OEM support: share your cable diameter, wire size, pole count, target application, branding idea, and expected quantity so we can recommend a suitable custom connector plan.
Real-World Engineering & Connector Deployments
Explore how PVLinkTech supports EPC contractors, OEM equipment builders, and utility operators across global solar, energy storage, and industrial projects with certified connection reliability.
Solar Energy
📍 West Java, Indonesia
120MW Floating & Ground-Mount Solar PV Utility
Provided high-protection DC harness solutions and MC4-compatible PV4 connectors for an utility-scale PV installation in a high-humidity, tropical monsoon region.
IP68
Waterproof Rating
1,500V DC
Rated System Voltage
- Zero connection fault reported across 18 months of operation
- Snap-lock design reduced field crimping and assembly time by 25%
- Anti-UV & flame-retardant housing (UL94-V0) for high durability
Energy Storage
📍 Bavaria, Germany
5MW/10MWh Containerized ESS Power Cabinet Wiring
Custom-engineered high-current battery connectors and flexible terminal assemblies for industrial C&I battery energy storage systems (BESS).
350A Max
Continuous Current
< 0.5mΩ
Ultra-low Resistance
- 360° touch-proof design prevents accidental electrical shock
- Keyway polarization ensures mis-mating prevention during installation
- Custom cable assembly cut-to-length for clean cabinet wiring
Industrial Signal
📍 Texas, USA
Outdoor Heavy Equipment Control & Signal System
Delivered rugged IP67 circular RJ45 and M12 signal interface connectors for automated sensors and control units operating under heavy vibration and dust.
10 Gbps
CAT6A Data Rate
IP67 / IP68
Dust & Salt Resistance
- High-frequency shielding prevents electromagnetic interference (EMI)
- Bayonet lock mechanism guarantees secure connection against shock
- Multi-interface options: RJ45, USB 3.0, Type-C, and power pins
Extreme Environment
📍 Atacama, Chile
200MW Desert Solar Park & High Altitude Storage
Supplied UV-resistant, high-temp DC branch connectors for a high-altitude desert plant facing severe diurnal temperature fluctuations and sandstorms.
1,500V / 50A
Voltage & Current
-40°~ +110°C
Temp Tolerance
- Special PPE housing material with extreme UV & ozone resistance
- Fluororubber (FKM) sealing ring prevents fine dust & sand ingress
- Sustained 100% connector structural integrity over 2+ years
FAQs About Screw Waterproof Connectors
Find answers about waterproof ratings, electrical performance, installation, customization, delivery, and technical support for PVLinkTech screw waterproof connectors.
What IP rating do PVLinkTech screw waterproof connectors have?
Many connector options are designed for IP68 protection, depending on the selected model and installation method. Final waterproof performance also depends on correct cable diameter matching and proper tightening.
What current and voltage ratings are available?
Different connector series support different ratings. PVLinkTech can help match a suitable model according to your wire size, pole count, voltage, current load, and application environment.
Are screw waterproof connectors suitable for outdoor solar installations?
Yes. Suitable models can be used in outdoor solar-related wiring, auxiliary equipment, lighting, and low-voltage systems when the connector specification matches the cable size, current requirement, and installation environment.
How difficult is the installation process?
Installation is straightforward when the correct model is chosen. The installer typically strips the cable, passes it through the gland and sealing components, connects the wires, tightens the terminals, and locks the connector body.
What certifications do your products support?
Certification availability depends on the connector series and exact model. Requirements may include waterproof testing, flame-retardant material ratings, and market-specific documentation. Please confirm the target model and destination market before ordering.
What is your minimum order quantity?
MOQ depends on product type, stock status, customization, packaging, and order plan. Standard items usually have more flexible ordering options than customized products.
Can you customize the connectors with our company logo?
Yes. PVLinkTech can discuss logo marking, private-label packaging, model labels, color options, cable length, and other OEM requirements according to your order quantity and project needs.
How quickly can you deliver orders?
Delivery time depends on stock availability, quantity, customization, and packaging requirements. For urgent projects, send us your target delivery date and model list so we can check the best stock or production plan.
Do you provide technical support after purchase?
Yes. PVLinkTech can support model selection, cable matching, installation questions, and basic integration guidance for distributors, contractors, and equipment manufacturers.
What is the expected lifespan of these connectors?
Service life depends on environmental exposure, load conditions, cable fit, installation quality, and maintenance. Choosing the correct cable gland range and keeping the sealing parts properly compressed helps improve long-term reliability.
PVLinkTech tip: Before requesting a quote, prepare your cable diameter, wire size, pole count, current load, installation environment, and preferred connector structure. Contact our team for model selection and a quotation.
