Male and Female Connectors
pvlinktech Waterproof Connector Manufacturing
Male & Female Waterproof Connector Supplier for Industrial Projects
pvlinktech focuses on practical waterproof connector solutions for lighting, power distribution, automation, solar wiring, outdoor equipment, and custom electrical assemblies. We support customers who need stable quality, flexible specifications, and reliable supply for project-based or bulk purchasing needs.
From connector structure selection to cable entry matching and private-label packaging, our team helps buyers choose products that fit real installation conditions instead of offering one-size-fits-all parts.
2-24
Pole options for different wiring layouts
IP68
Waterproof protection options available
OEM
Custom design and packaging support
Project-Friendly Supply
We help buyers match connector type, pole count, cable range, and waterproof rating to the installation environment, making product selection easier for distributors, contractors, and equipment manufacturers.
Flexible Customization
Custom body colors, cable lengths, labels, packaging, connector structures, and application-specific configurations can be discussed according to your market and project requirements.
Consistent Quality Control
pvlinktech pays attention to sealing performance, material stability, conductor contact, assembly accuracy, and packaging inspection so every batch is suitable for reliable field use.

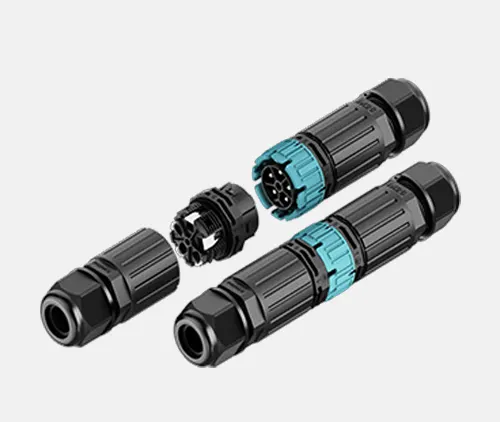

What Is a Male Female Waterproof Connector?
pvlinktech Connector Knowledge
A Sealed Plug-and-Socket Solution for Outdoor Wiring
A male female waterproof connector is a matched electrical connector set that joins two cable ends while helping protect the connection from water, dust, and outdoor exposure. The male side usually carries pins, while the female side contains matching sockets.
When both sides are locked together, the connector creates a stable path for power or signal transmission. Sealing rings, threaded caps, and precision-fit contact parts help reduce moisture entry and keep the connection secure during long-term use.
Typical Use
Lighting, solar wiring, machinery, sensors, and outdoor equipment.
Connection Style
Inline, panel mount, cable-to-cable, or custom assembly options.
Protection Focus
Waterproof sealing, dust resistance, and stable electrical contact.
Project Support
Available with cable length, pole count, and packaging customization.
pvlinktech supplies waterproof connector solutions for buyers who need practical product matching, reliable batch quality, and flexible configurations for different installation environments.
Why Choose pvlinktech Male Female Waterproof Connectors?
Built for outdoor wiring, equipment connection, and demanding electrical projects, pvlinktech waterproof connectors combine sealed structure, stable conductivity, durable materials, and flexible customization support.
Sealed for Harsh Environments
Designed to help protect cable connections from rain, dust, splash, humidity, and outdoor exposure, making them suitable for lighting, solar, equipment, and field wiring projects.
Stable Power and Signal Transfer
Precision contact structure supports reliable electrical transmission while reducing loose connections, helping maintain performance in repeated installation and maintenance scenarios.
Durable Engineering Housing
The connector body is built for strength, insulation, and long-term stability, helping resist aging, deformation, and daily handling in industrial and outdoor applications.
Easy Plug-and-Socket Assembly
Male and female matched designs make connection and replacement more convenient, helping installers save time while keeping cable layouts clean and organized.
Secure Locking Structure
Threaded or locking designs help keep the connector firmly engaged, reducing accidental loosening caused by vibration, cable movement, or routine equipment operation.
Project-Based Custom Support
pvlinktech can support different pole counts, cable lengths, body colors, packaging, labels, and connector configurations for distributors, equipment makers, and project buyers.
pvlinktech suggestion: choose connector models according to cable diameter, current requirement, installation position, and waterproof level. Correct matching is the key to long-term reliability.
Male Female Waterproof Connectors for Lighting and Outdoor Equipment
pvlinktech waterproof connectors are designed for projects that need quick connection, stable sealing, and reliable power transmission in outdoor, indoor, decorative, and equipment-based lighting systems.
Garden and Path Lighting
Suitable for garden lamps, pathway lighting, courtyard fixtures, and landscape projects where cables need moisture-resistant plug-and-socket connections.
Indoor and Outdoor LED Strips
Helps installers connect LED strips, cabinet lighting, signage, and decorative light runs while keeping wiring clean, modular, and easier to maintain.
Wall Washer and Underground Lights
A practical choice for architectural lighting, buried fixtures, facade illumination, and outdoor projects exposed to rain, soil, and frequent humidity.
Decorative Rope and Festival Lights
Supports seasonal lighting, outdoor decoration, event lighting, and long cable layouts where fast connection and reliable sealing are both important.
LED Fixtures and Modular Lighting
Useful for ceiling lights, downlights, display lighting, and modular LED systems where quick replacement and organized wiring save installation time.
Outdoor Floodlights and Equipment Lights
Designed for floodlights, work lights, equipment lighting, and industrial outdoor fixtures that need durable cable connection under changing weather.
pvlinktech recommendation: choose connector specifications based on cable diameter, current load, pole count, waterproof rating, and whether the connector will be exposed, buried, or mounted inside equipment.
Wholesale Male Female Waterproof Connector Series
pvlinktech supplies waterproof connector series for distributors, contractors, equipment manufacturers, and project buyers who need stable specifications, flexible selection, and reliable batch supply.
Connector Series Specification Overview
| No. | Model | Min. Wire Size | Max. Wire Size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MF-2/3/4P | 0.5mm² | 1.5mm² | 450V | 10A | 2.5-4.5mm, 3.5-7mm | IP68 | UL94 V-0 |
| 2 | EW-M19MF-2/3/4/5P | 0.5mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL94 V-0 |
| 3 | EW-M23MF-2/3/4/5P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 4 | EW-M28MF-2/3/4/5/6P | 0.75mm² | 6.0mm² | 450V | 50A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
| 5 | EW-P23MF-2/3P | 0.5mm² | 2.5mm² | 450V | 16A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 6 | EW-P25MF-4/5P | 0.5mm² | 2.5mm² | 450V | 16A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
| 7 | EW-M23MF-T-3P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 8 | EW-M23MF-Y-3P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 9 | EW-M23MF-H-3P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
EW-M15MF-2/3/4P
View SpecificationEW-M19MF-2/3/4/5P
View SpecificationEW-M23MF-2/3/4/5P
View SpecificationEW-M28MF-2/3/4/5/6P
View SpecificationEW-P23MF-2/3P
View SpecificationEW-P25MF-4/5P
View SpecificationEW-M23MF-T-3P
View SpecificationEW-M23MF-Y-3P
View SpecificationEW-M23MF-H-3P
View Specification
pvlinktech support: connector selection can be adjusted according to cable diameter, pole count, current requirement, waterproof level, packaging needs, and wholesale order plans.
Panel Mount Waterproof Connector Series
pvlinktech panel mount connectors are designed for equipment housings, control cabinets, LED systems, machinery panels, and outdoor electrical devices that need a sealed cable connection through a fixed surface.
Panel Mount Connector Specification Overview
| No. | Model | Min. Wire Size | Max. Wire Size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MP-2/3/4P | 0.5mm² | 1.5mm² | 450V | 10A | 2.5-4.5mm, 3.5-7mm | IP68 | UL94 V-0 |
| 2 | EW-M19MP-2/3/4/5P | 0.5mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL94 V-0 |
| 3 | EW-M23MP-2/3/4/5P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 4 | EW-M28MP-2/3/4/5/6P | 0.75mm² | 6.0mm² | 450V | 50A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
| 5 | EW-M19MP-2/3/4/5P | 0.5mm² | 2.5mm² | 450V | 20A | 3.5-7mm, 7-10mm | IP68 | UL94 V-0 |
| 6 | EW-M23MP-2/3/4/5P | 0.75mm² | 4.0mm² | 450V | 30A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 7 | EW-M28MP-2/3/4/5/6P | 0.75mm² | 6.0mm² | 450V | 50A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
EW-M15MP-2/3/4P
View SpecificationEW-M19MP-2/3/4/5P
View SpecificationEW-M23MP-2/3/4/5P
View SpecificationEW-M28MP-2/3/4/5/6P
View SpecificationEW-M19MP-2/3/4/5P
View SpecificationEW-M23MP-2/3/4/5P
View SpecificationEW-M28MP-2/3/4/5/6P
View Specification
pvlinktech support: panel mount connector options can be matched according to cable diameter, pole count, rated current, installation hole position, waterproof requirements, and OEM packaging needs.
Flange Panel Mount Waterproof Connector Series
pvlinktech flange panel mount connectors are designed for equipment panels, control boxes, LED power systems, machinery housings, and outdoor devices that need a secure fixed connector with reliable waterproof sealing.
Flange Panel Mount Specification Overview
| No. | Model | Min. Wire Size | Max. Wire Size | Rated Voltage | Current | Cable Outer Diameter | IP Rating | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| 1 | EW-M15MP-3P | 0.5mm² | 1.5mm² | 450V | 17.5A | 2.5-4.5mm, 3.5-7mm | IP68 | UL94 V-0 |
| 2 | EW-M19MP-3P | 0.5mm² | 2.5mm² | 450V | 24A | 3.5-7mm, 7-10mm | IP68 | UL94 V-0 |
| 3 | EW-M23MP-3P | 0.75mm² | 4.0mm² | 450V | 41A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 4 | EW-M28MP-3P | 0.75mm² | 6.0mm² | 450V | 41A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
| 5 | EW-P23MP-3P | 0.5mm² | 2.5mm² | 450V | 24A | 5-9mm, 9-12mm | IP68 | UL94 V-0 |
| 6 | EW-P25MP-4/5P | 0.5mm² | 2.5mm² | 450V | 30A | 5-9mm, 9-12mm, 10-14mm | IP68 | UL94 V-0 |
EW-M15MP-3P
View SpecificationEW-M19MP-3P
View SpecificationEW-M23MP-3P
View SpecificationEW-M28MP-3P
View SpecificationEW-P23MP-3P
View SpecificationEW-P25MP-4/5P
View Specification
pvlinktech support: flange panel mount connector options can be selected according to panel thickness, hole position, cable diameter, pole count, rated current, waterproof level, and OEM packaging requirements.
pvlinktech Manufacturing Capability
How We Build Male and Female Waterproof Connectors
From product design to final packaging, pvlinktech follows a practical manufacturing workflow to support stable quality, flexible customization, and reliable delivery for waterproof connector projects.
01
Product Design Review
Our team reviews connector structure, cable range, pole count, sealing position, and installation requirements before production begins.
02
Mold Development
Mold precision affects connector fit, locking strength, and sealing performance, so pvlinktech controls mold details carefully before mass production.
03
Injection Molding
Connector housings are formed using selected engineering materials to support insulation, durability, and outdoor application requirements.
04
Metal Contact Processing
Conductive parts are processed for stable electrical contact, helping connectors maintain reliable current transmission during use.
05
Component Assembly
Sealing rings, terminals, housings, locking parts, and cable glands are assembled according to product structure and order requirements.
06
Final Assembly
Finished connectors are checked for appearance, fit, locking condition, and key assembly details before moving to inspection.
07
Quality Inspection
Inspection focuses on sealing parts, contact stability, dimensions, appearance, and batch consistency before products are approved.
08
Order Packaging
Products can be packed for wholesale, OEM, private label, or project delivery according to customer requirements.
09
Warehouse and Delivery
Finished goods are organized for shipment, helping customers receive connector products with clear labeling and stable supply support.
pvlinktech support: we can discuss connector model selection, cable range, pole count, packaging style, and OEM requirements based on your project or wholesale plan.
pvlinktech Installation Guide
How to Install Male & Female Waterproof Connectors
A secure waterproof connection starts with the correct cable preparation, sealing order, wire fastening, and final locking. Follow this simple workflow before placing the connector into service.
01
Open the Connector Parts
Separate the cable gland, sealing ring, connector body, and locking parts. Check that every part is clean and matches the cable diameter before wiring.
02
Thread the Cable Correctly
Pass the cable through the gland, sealing ring, and housing in the correct order. This prevents missing parts after the wires are connected.
03
Connect and Tighten Wires
Insert each conductor into the correct terminal position and tighten it firmly. Gently pull the wires to confirm stable contact before closing.
04
Lock and Inspect
Tighten the connector body and cable gland evenly. Confirm the male and female ends are fully engaged and sealed before power-on testing.
pvlinktech reminder: waterproof performance depends on proper cable diameter matching, correct sealing ring placement, and complete locking. Avoid over-tightening or using damaged sealing parts.
Customer Application Success Stories
pvlinktech waterproof connectors are used in real outdoor lighting, signage, LED, and equipment projects where stable sealing, fast installation, and reliable long-term operation matter.
Case Study 01
Resort Landscape Lighting Upgrade
A resort lighting contractor needed a cleaner way to connect outdoor garden lights, pathway lamps, and low-voltage landscape fixtures across a large property exposed to rain, humidity, and irrigation water.
- Matched waterproof connectors to different cable diameters
- Reduced wiring repair time during routine maintenance
- Improved connection consistency across multiple lighting zones
The project team used modular waterproof connectors to simplify future lamp replacement while keeping the cable layout organized and protected.
Discuss Similar Project
Case Study 02
LED Strip Distributor Connection Kit
An LED strip distributor wanted a repeatable connector solution for customers installing decorative, cabinet, signage, and outdoor strip lighting in different environments.
- Created a connector selection plan for common LED strip projects
- Supported cleaner plug-and-play installation for end users
- Helped reduce confusion around cable size and waterproof matching
The final connector kit made product selection easier for installers and helped the distributor provide a more complete lighting accessory package.
Request Connector SupportCustom Connector Development
Custom Male Female Waterproof Connector Solutions
pvlinktech helps customers turn standard waterproof connectors into market-ready products for their own brand, project, or equipment system. We support practical customization for connector appearance, cable matching, packaging, labels, and application-specific requirements.
Branding Options
- Logo marking on connector housings
- Model number and product code customization
- Private label support for distributors
- Color and appearance matching by project
Packaging Support
- Retail box layout for branded products
- Bulk packing for wholesale orders
- Instruction sheets and label stickers
- QR code or website information support
pvlinktech OEM support: share your target market, cable size, connector type, order quantity, and branding idea. Our team can help recommend a practical customization plan.
Request Custom Solution
