Energia solar fotovoltaica Connection Solutions

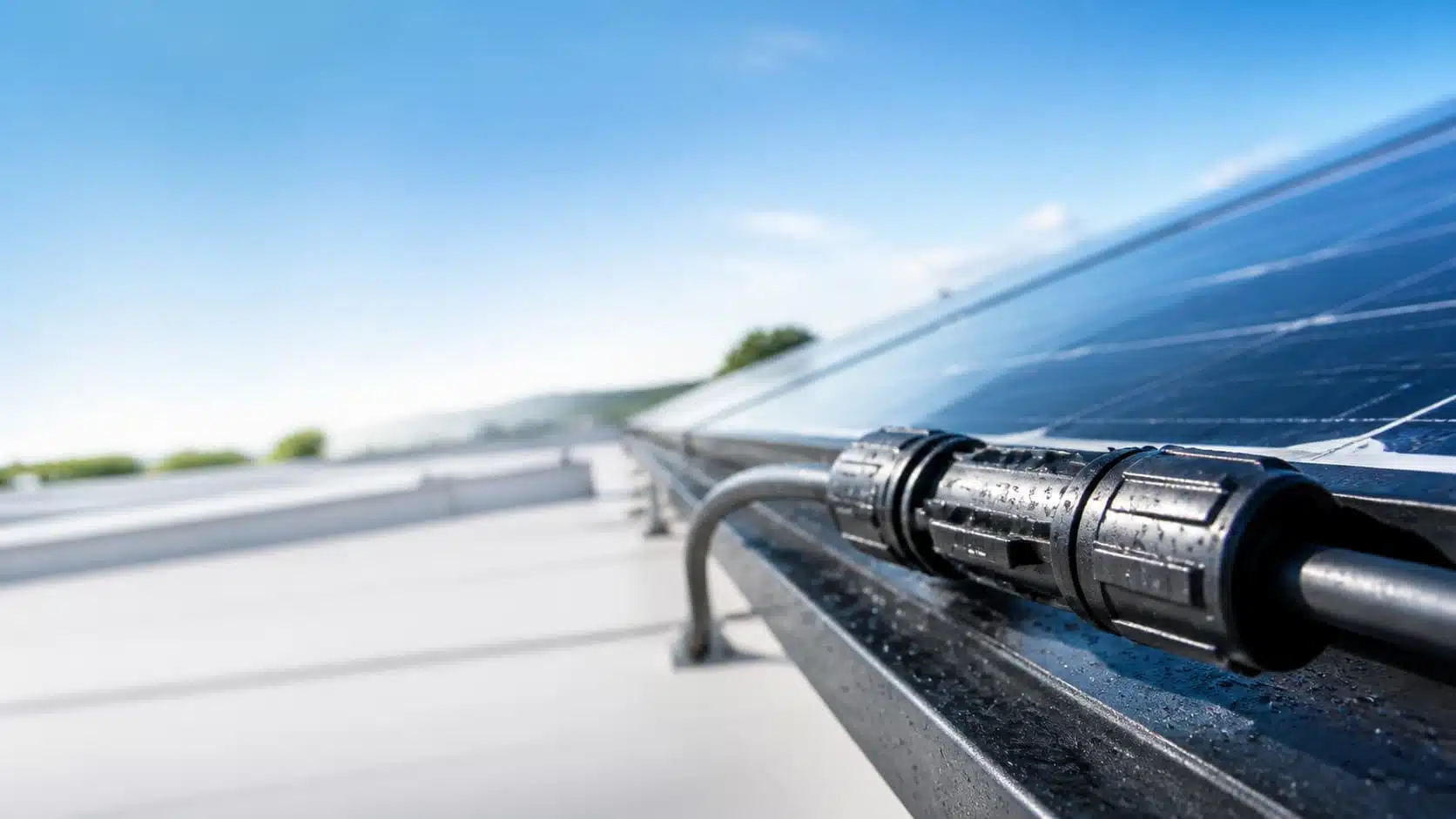

Solar PV connector solutions play a critical role in system safety, energy yield and long-term reliability. In rooftop, utility-scale and floating solar projects, DC connectors and cable assemblies must withstand UV exposure, temperature changes, moisture, dust and continuous outdoor operation.
PV Link Tech provides complete solar PV connectivity solutions, including MC4-compatible connectors, branch connectors, waterproof cable glands and custom cable assemblies. Our solutions support secure module-to-string, string-to-combiner box and inverter-side connections for rooftop, utility-scale and floating PV projects.
Designed for reliable outdoor installation, our solar PV connector solutions help improve installation efficiency, protect DC circuits and support stable power generation over the life of the system.
IP68 Waterproof
1.500 V CC
UV Resistant
Conjuntos de cabos personalizados
Why Is Connector Selection Critical for Battery Energy Storage Systems?
What challenges do BESS connections face in operation?
Battery energy storage systems combine high-current DC circuits, sensitive control signals and demanding installation environments. Reliable connectors and cable assemblies are essential for safe operation, efficient assembly and long-term system maintenance.
- High-current load – Battery modules, racks and PCS systems require connectors designed for continuous current-carrying performance.
- Heat generation – Poor contact quality or undersized connections can increase resistance and create unwanted temperature rise.
- Safety requirements – Touch-safe designs, secure locking and keyed connections help reduce the risk of incorrect mating or accidental contact.
- Limited installation space – Battery cabinets and containerized systems require compact, organized cable routing and reliable connection layouts.
- Maintenance efficiency – Clear identification and custom-built cable harnesses can simplify installation, inspection and replacement work.
A typical battery energy storage system includes many connection points across battery modules, battery racks, cabinets, busbars, PCS equipment and control systems. Every connection must work reliably as part of the complete system.
A poorly matched connector or cable assembly can lead to installation delays, difficult maintenance and reduced system availability. Selecting the right current rating, contact design, cable size and locking method helps protect the full energy storage connection chain.
PV Link Tech provides battery energy storage connectivity solutions with high-current connectors, touch-safe interfaces, keyed connections and custom cable harnesses tailored to battery modules, racks, cabinets and PCS systems.
LED Display & Stage Lighting Connectivity System
Outdoor LED displays and stage lighting systems rely on a complete power, signal and protection chain. Each connection point must work together to support reliable performance during installation, transport and live operation.
- Power input. Power enters the system through secure, locking connectors designed for reliable AC or DC distribution.
- Power distribution. Power connectors and cable assemblies distribute energy between LED cabinets, lighting fixtures, control boxes and related equipment.
- Signal transmission. Waterproof RJ45, fibre, HDMI and other signal interfaces support stable data and video transmission between processors, controllers and display cabinets.
- Equipment connection. Heavy-duty and aviation connectors combine multiple power and signal contacts for equipment that requires frequent setup, disassembly or reconfiguration.
- Waterproof protection. Cable glands, panel-mount connectors and protective caps help seal cable entries and unused ports against moisture, dust and outdoor exposure.
A reliable LED display and stage lighting system is only as strong as its weakest connection point. Selecting compatible connectors, secure locking systems and suitable IP-rated protection helps reduce downtime and simplify installation in outdoor and rental applications.
How to Select the Right PV Connection Solution
Selecting solar PV connector solutions should be based on system voltage, installation environment, cable specification and project requirements. These four questions help define the right configuration.
01
What Is the System Voltage?
Confirm whether your project requires 1000V or 1500V DC components. Connectors, cables and related parts should share a compatible voltage rating for safe, reliable operation.
02
Where Will the System Be Installed?
Rooftop, ground-mounted and floating PV systems face different levels of UV exposure, moisture, dust and corrosion. Choose protection suited to the actual installation environment.
03
What Cable Size and Routing Are Required?
The connector terminal and sealing range must match the cable conductor size and outside diameter. Also consider cable routing length and enclosure entry requirements.
04
Standard Connectors or Custom Assemblies?
MC4-compatible connectors suit many module and string connections. Custom solar cable assemblies can reduce onsite work for combiner boxes, inverter connections and larger projects.
Share your system voltage, cable specification and installation environment — we will recommend a matched solar PV connector solution.
Solar PV Connectivity Product Overview
Our solar PV connector solutions focus on secure DC connections for PV modules, string distribution and project-specific cable assemblies.
| Product Category | Application in PV System | Key Specification | Característica principal |
|---|---|---|---|
|
Conectores solares MC4 / PV4 Module & String Connection |
Module-to-module and module-to-string DC connections. |
Up to 1500V DC IP68 Waterproof |
Secure locking, UV-resistant materials and reliable outdoor sealing. |
|
PV Branch Connectors String Distribution |
Parallel connection and distribution of PV strings. |
Compatible with PV cable systems IP68 Waterproof |
Compact string distribution, simplified wiring and dependable DC connections. |
|
Custom Solar Cable Harnesses Montagem personalizada |
Combiner boxes, inverter inputs and project-specific DC wiring. |
Custom cable length Custom connector configuration |
Reduces onsite crimping, improves installation efficiency and supports consistent assembly. |
Designed for Reliable Outdoor Installation
Reliable solar PV connector solutions depend on correct component matching and careful installation. These practices help protect the DC connection chain and support long-term outdoor performance.
01
Match Connectors and PV Cables
Select compatible connectors, terminals and solar cables based on system voltage, current rating, conductor size and cable outer diameter.
02
Avoid Mixing Incompatible Components
Use connector components designed to mate together. Avoid combining different brands or non-compatible connector types within one DC circuit.
03
Keep Contacts Clean and Secure
Keep terminals clean and dry before connection, then make sure each connector is fully mated and locked according to the installation method.
04
Seal Every Cable Entry
Use waterproof cable glands that match the cable diameter wherever solar cables enter combiner boxes, junction boxes or inverter enclosures.
05
Use Pre-Assembled Cable Harnesses
Custom pre-assembled solar cable assemblies can reduce onsite crimping, minimize installation errors and improve assembly efficiency.
Need a matched configuration? Share your solar system voltage, cable size, installation environment and connection requirements with PV Link Tech.
Perguntas frequentes
Find answers to common questions about solar PV connector solutions, cable assemblies and outdoor installation.
Are your connectors compatible with MC4 systems?
Our MC4 / PV4 solar connectors are designed for common PV module and string connection applications. Before installation, confirm the connector type, voltage rating, cable specification and compatibility requirements for your specific system.
What is the difference between IP67 and IP68 for solar connectors?
IP67 generally indicates protection against dust and temporary water immersion, while IP68 is intended for dust protection and a higher level of water-ingress protection under conditions specified by the manufacturer. Select the rating according to the actual installation environment and product specification.
Can you provide 1500V DC connector solutions?
Yes. We can provide solar PV connector solutions for 1500V DC applications. Please share your required current rating, cable size, installation environment and project quantity so we can recommend a suitable configuration.
Do you offer custom cable lengths and pre-assembled harnesses?
Yes. Custom solar cable assemblies can be supplied with specified cable lengths, connector combinations and harness configurations. Pre-assembled harnesses help reduce onsite crimping and improve installation efficiency.
How do I choose the correct cable gland for a PV enclosure?
Match the cable gland sealing range to the actual outer diameter of the solar cable, then confirm the required protection level, thread type and enclosure material. A correctly sized cable entry helps maintain reliable sealing and strain relief.
Can your solutions be used in floating solar projects?
Yes. Floating PV projects require careful consideration of moisture, humidity, UV exposure and corrosion risk. Share the project environment and system requirements with us, and we can help identify suitable waterproof connectors and custom cable assemblies.
