What Is an MC4 Solar Connector?
An MC4 solar connector is a weather-resistant DC connector used to link solar panels, combiner boxes, inverters, and photovoltaic cable assemblies. PVLinkTech designs MC4-compatible connector solutions for stable current transmission, outdoor sealing, and efficient solar system installation.
Built for outdoor solar wiring
Designed for PV cable connection, polarity matching, and long-term use in demanding outdoor environments.
Reliable Panel Connection
MC4-style connectors create secure links between solar modules and system cables. A matched male and female pair helps maintain polarity and reduces the risk of loose field connections.
Sealed for Outdoor Use
PVLinkTech solar connector designs focus on moisture resistance, UV exposure, temperature changes, and dust protection, helping PV systems perform reliably across changing weather conditions.
Fast Installation Workflow
Snap-lock connection, clear cable matching, and compatible PV cable sizing help installers complete solar wiring work faster while keeping the connection stable and serviceable.
DC
For photovoltaic power transmission
IP Rated
Designed for outdoor solar environments
PV Cable
Supports common solar cable assemblies
OEM
Custom cable and connector options available
Solar Connector Manufacturing
PVLinkTech MC4 Solar Connectors Supplier & Manufacturer
PVLinkTech supplies MC4-compatible solar connectors, PV cable assemblies, waterproof connector systems, and OEM wiring solutions for photovoltaic and energy storage projects. Our production process focuses on stable conductivity, outdoor sealing, reliable materials, and consistent delivery for global buyers.
From Connector Design To Reliable Solar Wiring
We support solar installers, equipment manufacturers, distributors, and project buyers with connector selection, cable matching, sample preparation, customized packaging, and production coordination. Each project is reviewed according to application environment, cable specification, current rating, and installation workflow.
OEM
Custom cable length, connector type, labeling, and packaging
PV
Designed for photovoltaic systems and outdoor DC wiring
IP
Waterproof connector solutions for demanding environments
QC
Material inspection, assembly checks, and electrical testing

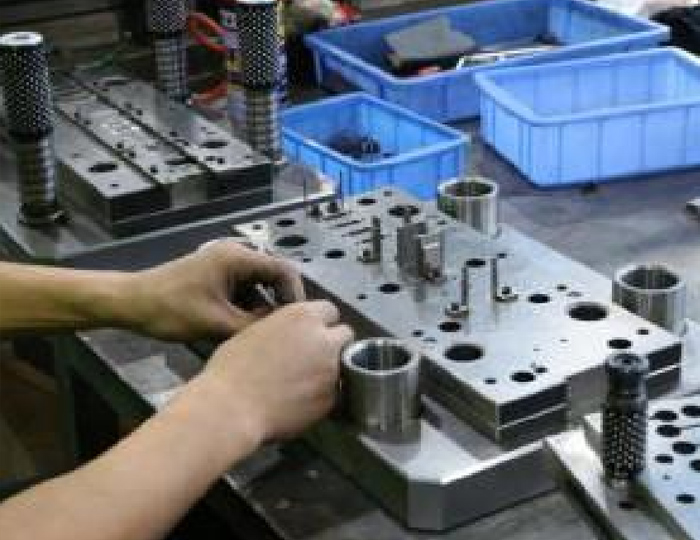

Automatic Assembly Workshop
Connector Production Equipment
Hardware Stamping Department
Warehouse & Production Support
Why Work With PVLinkTech
Why Choose PVLinkTech MC4 Solar Connectors?
PVLinkTech develops MC4-compatible solar connector solutions for stable outdoor wiring, fast installation, and long-term photovoltaic system performance.
Fast Field Installation
Snap-lock connection and clear polarity matching help installers complete PV wiring work quickly with fewer repeat checks.
Stable Conductivity
Connector structures are designed for reliable current transmission and reduced contact resistance in solar cable assemblies.
Outdoor Sealing Design
Waterproof sealing, UV-resistant materials, and tight cable matching help protect connections from rain, dust, and aging.
Project-Based Matching
We help match connector types, cable sizes, and application requirements for solar panels, combiner boxes, and inverters.
OEM Cable Support
Custom cable length, connector pairing, labeling, packaging, and assembly options are available for volume buyers.
Quality-Controlled Supply
Production is supported by material inspection, assembly checks, electrical testing, and packaging verification.
Solar wiring made more reliable
Connector, cable, and sealing details are matched around real installation conditions.
Solar Connector Solutions
Built For Photovoltaic Projects That Need Stable Power Flow
PVLinkTech MC4-compatible connectors are used in residential solar systems, commercial rooftop installations, ground-mounted solar farms, and energy storage projects. Our solutions help create secure DC connections between solar panels, PV cables, combiner boxes, inverters, and monitoring equipment.
Whether you need standard solar connector supply or customized cable assemblies, PVLinkTech supports your project with practical selection guidance, OEM flexibility, and consistent production quality.
PV cable assemblies
MC4-compatible connectors
Combiner box wiring
OEM packaging support
PVLinkTech Manufacturing Workflow
How PVLinkTech Builds MC4 Solar Connectors
Every PVLinkTech MC4-compatible solar connector is produced through a controlled workflow covering material inspection, precision forming, automated assembly, sealing verification, and final electrical testing.
1
Material Selection & Housing Preparation
Engineering plastics, sealing parts, and conductive components are checked before production. Housing materials are selected for outdoor durability, insulation performance, and UV resistance.
2
Metal Contact Forming
Copper alloy contacts are formed and processed for stable current transmission. Dimensional control helps ensure reliable mating, crimping, and long-term electrical performance.
3
Connector Component Integration
Male and female connector parts are prepared with matched terminals, locking structures, nuts, and sealing elements to support secure PV cable assembly.
4
Assembly & Sealing Control
Connector assemblies are fitted with sealing rings and cable glands. Key positions are checked to help maintain waterproof protection and installation reliability.
5
Visual Inspection & Process Checks
Appearance, component fit, locking condition, and assembly consistency are reviewed during production to reduce defects before final testing.
6
Electrical Testing & Final Packaging
Finished connectors are checked for electrical performance, mechanical fit, and packaging requirements before shipment for solar, energy storage, and OEM projects.
PVLinkTech quality focus: each production stage is designed to support stable conductivity, outdoor sealing performance, and consistent supply for photovoltaic system buyers.
OEM & Bulk Supply ReadySolar Project Results
Real Results From PVLinkTech Solar Connector Users
PVLinkTech supports solar installers, EPC teams, distributors, and equipment manufacturers with MC4-compatible connectors and PV cable assemblies designed for stable outdoor performance.
01
Case Study
Utility Solar Farm Connector Upgrade
A large photovoltaic project needed connector assemblies that could handle outdoor exposure, long cable runs, and repetitive installation work. PVLinkTech supplied MC4-compatible connector solutions with stable fit and consistent batch quality.
- Challenge: harsh UV exposure and high-volume field wiring
- Solution: matched PV cable assemblies with outdoor sealing support
- Result: smoother installation workflow and more consistent connector quality
02
Case Study
Residential Rooftop Solar Program
A solar installation team wanted to standardize connector selection across residential projects. PVLinkTech helped simplify cable matching, connector pairing, and packaging requirements for repeated rooftop installation work.
- Challenge: mixed connector types increasing training and inventory pressure
- Solution: standardized MC4-compatible connector and cable assembly supply
- Result: easier inventory control and faster installation preparation
PVLinkTech Solar Connector Range
MC4-Compatible Solar Connector Product Series
PVLinkTech supplies MC4-compatible solar connectors, PV cable plugs, panel-mount connectors, fuse holders, assembly tools, and protective accessories for photovoltaic wiring and energy system projects.
PV4 Cable Mount Female Plug
Model: PV4-CF Series
PV4 Cable Mount Male Plug
Model: PV4-CM Tool-Unlock
PV4 Manual Unlock Plug
Model: PV4-CM Manual Series
PV4 Panel Mount Female Plug
Model: PV4-PF Series
PV4 Panel Mount Male Plug
Model: PV4-PM Tool-Unlock
PV4 Panel Manual Unlock Plug
Model: PV4-PM Manual Series
PV4 Solar Fuse Connector
Model: PV4-Fuse Series
PV4 Assembly Tool
Model: PV4-Tool
Male & Female Protective Cover
Model: PV4-Cover
Specification Download
Request connector drawings, technical datasheets, and matching recommendations for your solar project.
PVLinkTech Solar Connector System
MC4 Solar Connector Accessories & Installation Tools
PVLinkTech provides MC4-compatible connector components, protective accessories, and installation tools to help solar installers build secure, weather-resistant, and serviceable PV cable connections.
Connector Components
Everything Needed For A Stable PV Connection
MC4-compatible solar connections depend on matched housings, metal contacts, sealing rings, and locking structures. PVLinkTech supports buyers with connector sets and accessory options for standard and customized photovoltaic wiring projects.
- Male & female connector housings: designed for secure pairing and field installation.
- Conductive metal contacts: built for stable current transmission and consistent crimping.
- Sealing and locking parts: help protect PV cable connections from rain, dust, and outdoor aging.
Installation Support
Tools That Make Solar Wiring Faster And Cleaner
Professional installation tools help reduce wiring errors, protect connector parts, and improve installation consistency across rooftop, ground-mounted, and energy storage projects.
- Crimping tools: support consistent terminal crimping for PV cable assemblies.
- Stripping tools: help remove insulation cleanly before connector assembly.
- Assembly wrenches: assist with tightening connector parts without damaging housings.
- Release tools: support maintenance, inspection, and system modification work.
PVLinkTech Quality Laboratory
Product Testing For Reliable Waterproof Connections
PVLinkTech waterproof connectors are tested before mass production and shipment. Our quality process focuses on electrical performance, sealing reliability, mechanical strength, environmental durability, and long-term safety in demanding applications.
Automatic Insertion & Extraction Tester
Temperature Rise Current Tester
Voltage Tester
Horizontal Plug-In Test
DC Resistance + Insulation Tester
IP68 Waterproof Tester
Scorch Wire Tester
Leakage Trace Tester
Horizontal Vertical Flame Tester
Temperature & Humidity Tester
Electrical Testing
- Contact resistance: checked for stable conductivity
- Insulation resistance: verified for safe operation
- Dielectric strength: tested for electrical protection
- Voltage performance: evaluated by product series
Mechanical Testing
- Insertion force: checked for smooth assembly
- Retention force: tested for secure connection
- Pull strength: evaluated for cable reliability
- Durability: reviewed through repeated operation
Environmental Testing
- Temperature cycling: checks material stability
- Humidity exposure: evaluates long-term sealing
- UV resistance: supports outdoor application use
- Corrosion review: helps assess harsh environments
Safety & Compliance
- Flame resistance: reviewed by material requirement
- RoHS materials: selected for compliant production
- IP protection: tested according to product design
- Final inspection: checked before shipment
PVLinkTech Solar Connector FAQ
MC4 Connector Questions Answered Clearly
These answers help solar installers, distributors, and OEM buyers understand MC4-compatible solar connectors, PV cable matching, waterproof protection, and common installation considerations.
What is the difference between MC4 and MC3 connectors?
MC4-style connectors use a more secure locking structure and are widely used in modern photovoltaic systems. MC3 connectors are older and less common in current solar installations. PVLinkTech focuses on MC4-compatible solutions for stable outdoor PV wiring.
Can MC4-compatible connectors be used outdoors?
Yes. MC4-compatible solar connectors are designed for outdoor PV cable connections. For reliable performance, the connector, cable diameter, sealing parts, and installation method must be correctly matched.
What tools are needed for MC4 solar connector installation?
Typical installation may require a cable stripper, terminal crimping tool, connector assembly wrench, and release tool. PVLinkTech can recommend suitable accessories based on the cable and connector model you select.
How do I choose the right PV cable size?
Cable size depends on system current, cable length, voltage drop requirements, and local installation standards. PVLinkTech can help review your application and suggest connector options that match common solar cable specifications.
Are connectors from different suppliers always compatible?
Not always. Even when connectors look similar, locking details, contact dimensions, sealing structures, and cable fit may differ. For long-term safety, it is better to use matched connector pairs or confirm compatibility before installation.
Can PVLinkTech provide custom solar connector assemblies?
Yes. PVLinkTech supports OEM cable assemblies, custom cable length, connector pairing, labeling, packaging, and bulk supply for solar installers, distributors, and equipment manufacturers.
How can I reduce poor connections in solar projects?
Use the correct cable size, crimp terminals properly, avoid mixing unmatched connector types, check sealing parts, and inspect the connection before energizing the system. Consistent connector sourcing also helps reduce field issues.
What information should I provide before requesting a quote?
Please share connector type, cable specification, rated voltage/current, order quantity, packaging needs, target application, and whether you need samples, drawings, or custom labeling. This helps PVLinkTech prepare a more accurate recommendation.
